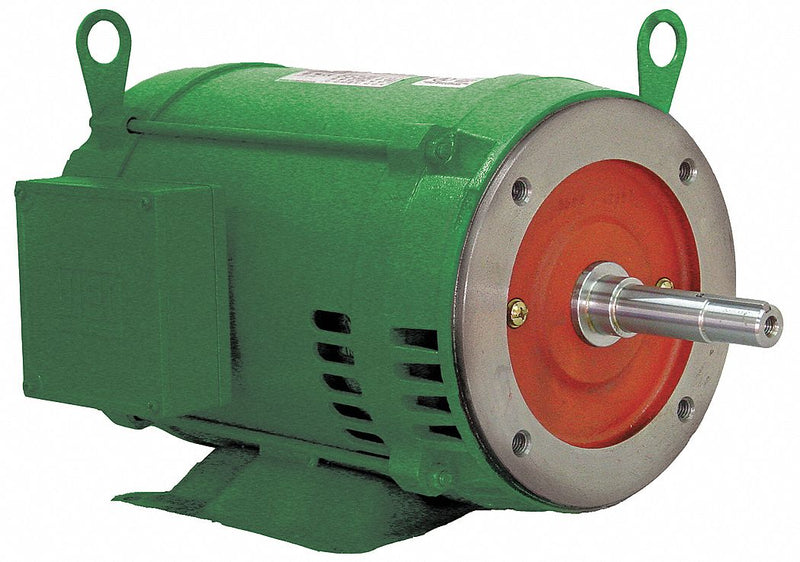

Close-Coupled Pump Motor; Motor Application: Pump; Motor Sub Application: Close-Coupled Pump; Motor Design: 3-Phase; Motor Enclosure Design: Open Dripproof; HP: 60; Nameplate RPM: 1780; Frame: 364JM; Motor Shaft Rotation: CW/CCW; Voltage: 460; Full Load Amps: 69.9; Phase: 3; Hz: 60; Motor Mounting Type: Face/Base; Motor Bearings: Ball; Motor Frame Material: Cast Iron; Motor Thermal Protection: None; Motor Service Factor: 1.15; Max. Ambient Temp.: 40 Degrees C; Shaft Dia.: 1 1/4 in; Shaft Length: 5 1/4 in; Motor Shaft Design: JM Threaded; Length Less Shaft: 23 7/8 in; Overall Length: 29 1/8 in; Ins. Class: F; Duty: Continuous; Nominal Efficiency: 95 %; CC Number: CC029A; Motor Efficiency Group: NEMA Premium Efficient; Inverter Rated: Yes; Standards: CE Compliant, CSA Certified, UL Recognized; Voltage Compatibility: 208-230/460, 460; Green Environmental Attribute: Product Contributes To Reducing Energy Consumption; Green Certification or Other Recognition: NEMA Premium(R) Rated
| Item | Close-Coupled Pump Motor |
| Motor Application | Pump |
| Motor Sub Application | Close-Coupled Pump |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Open Dripproof |
| HP | 60 |
| Nameplate RPM | 1780 |
| Frame | 364JM |
| Motor Shaft Rotation | CW/CCW |
| Voltage | 460 |
| Full Load Amps | 69.9 |
| Phase | 3 |
| Hz | 60 |
| Motor Mounting Type | Face/Base |
| Motor Bearings | Ball |
| Motor Frame Material | Cast Iron |
| Motor Thermal Protection | None |
| Motor Service Factor | 1.15 |
| Max. Ambient Temp. | 40 Degrees C |
| Shaft Dia. | 1 1/4 in |
| Shaft Length | 5 1/4 in |
| Motor Shaft Design | JM Threaded |
| Length Less Shaft | 23 7/8 in |
| Overall Length | 29 1/8 in |
| Ins. Class | F |
| Duty | Continuous |
| Nominal Efficiency | 95 % |
| CC Number | CC029A |
| Motor Efficiency Group | NEMA Premium Efficient |
| Inverter Rated | Yes |
| Standards | CE Compliant, CSA Certified, UL Recognized |
| Voltage Compatibility | 208-230/460, 460 |
| Green Environmental Attribute | Product Contributes To Reducing Energy Consumption |
| Green Certification or Other Recognition | NEMA Premium(R) Rated |
