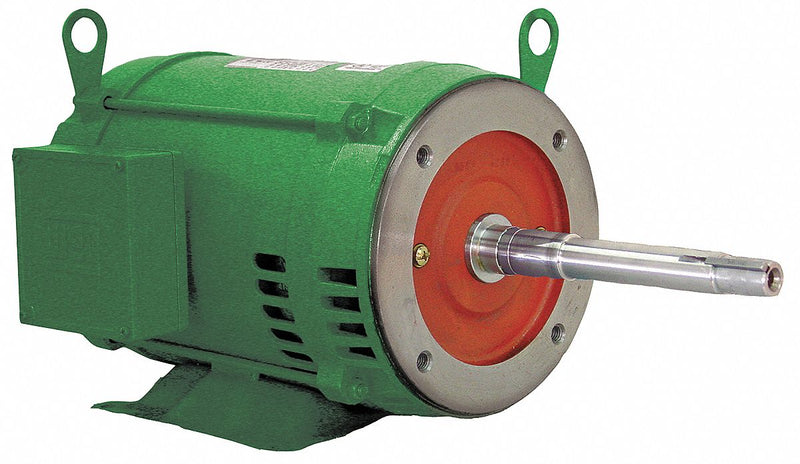

Weg 10018OT3E404JP - PumpMtr 3ph 100hp 1780 208-230/460 404JP

WEGSKU: C2948567
MPN : 10018OT3E404JP
Weight : 1068.11 lb
filler

Price:
$12,694.42 $15,481.00

Availability : Usually Ships in 7-10 Business Days
ItemClose-Coupled Pump Motor
Motor ApplicationPump
Motor Sub ApplicationClose-Coupled Pump
Motor Design3-Phase
Motor Enclosure DesignOpen Dripproof
HP100
Nameplate RPM1780
Frame404JP
Motor Shaft RotationCW/CCW
Voltage208-230/460
Full Load Amps207-230/115
Phase3
Hz60
Motor Mounting TypeFace/Base
Motor BearingsBall
Motor Frame MaterialCast Iron
Motor Thermal ProtectionNone
Motor Service Factor1.15
Max. Ambient Temp.40 Degrees C
Shaft Dia.1 5/8 in
Shaft Length8 1/8 in
Motor Shaft DesignJP Threaded
Length Less Shaft27 1/8 in
Overall Length35 1/4 in
Ins. ClassF
DutyContinuous
Nominal Efficiency95.4 %
CC NumberCC029A
Motor Efficiency GroupNEMA Premium Efficient
Inverter RatedYes
StandardsCE Compliant, CSA Certified, UL Recognized
Voltage Compatibility208, 208-220/440, 208-230, 208-230/460, 208-240, 220-230/460, 220/460, 230, 230/460, 240, 460
Green Environmental AttributeProduct Contributes To Reducing Energy Consumption
Green Certification or Other RecognitionNEMA Premium(R) Rated
