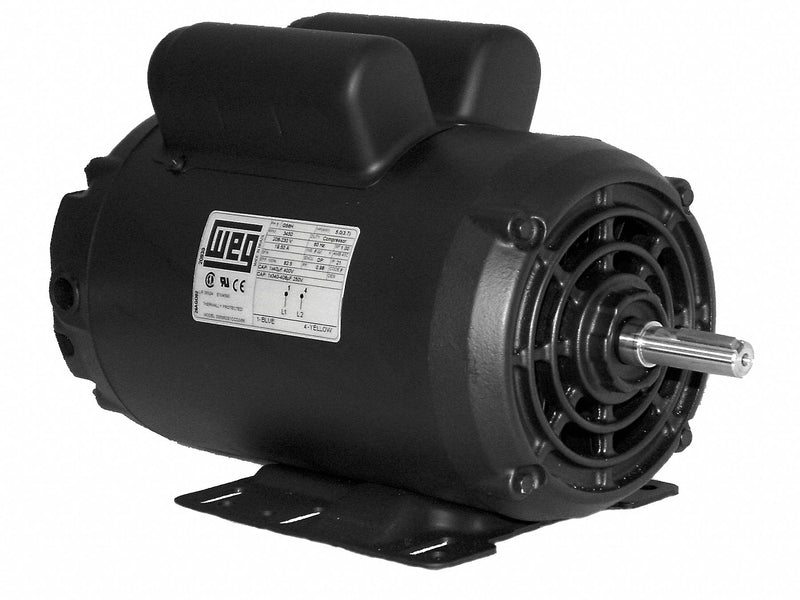

Air Compressor Motors,Type: capacitor-start, except where indicated Mounting: reinforced base Insulation: Class B Max. ambient: 40C Bearings: ball Thermal protection: manual,Designed to meet the high-torque requirements of air compressor loads. Suitable for intermittent-duty, portable, and stationary air compressors.,UL Recognized and CSA Certified.
| Item | Commercial Duty Air Compressor Motor |
| Motor Application | Air Compressor |
| Motor Design | Capacitor-Start/Run |
| Motor Enclosure Design | Open Dripproof |
| HP | 4 |
| Nameplate RPM | 3440 |
| Frame | 56HZ |
| Voltage | 230 |
| Hz | 60 |
| Phase | 1 |
| Full Load Amps | 16.5 |
| Motor Mounting Type | Rigid Base |
| Motor Thermal Protection | Manual |
| Ins. Class | B |
| Motor Service Factor | 1.15 |
| Motor Bearings | Ball |
| Max. Ambient Temp. | 40 Degrees C |
| Motor Shaft Rotation | CCWSE |
| Motor Shaft Design | Keyed |
| Overall Length | 14 1/4 in |
| Shaft Dia. | 7/8 in |
| Shaft Length | 2 1/4 in |
| Duty | Continuous |
| Standards | CSA Certified (LR38324), UL Recognized |
| Capacitor Included | Yes |
