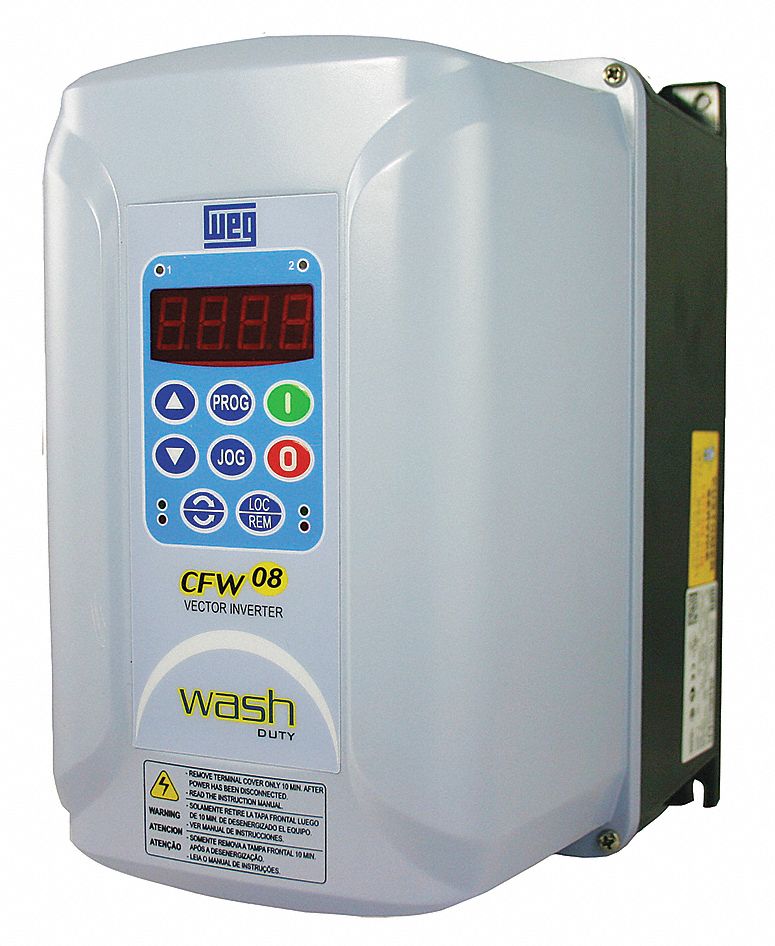

| Item | Variable Frequency Drive |
| Max. HP | 5 hp |
| Enclosure | NEMA 4X |
| Input Voltage | 240V AC |
| Max. Output Amps | 16 A |
| Output Voltage | 240V AC |
| Input Phase AC | 3 |
| Output Phase AC | 3 |
| With Bypass / No Bypass | No Bypass |
| With Line Contactor / No Line Contactor | No Line Contactor |
| Starting Torque | 150% |
| Input Frequency | 50/60 Hz |
| Output Frequency Range | 0 to 300 Hz |
| Adjustable Acceleration Time | 0 to 999 sec |
| Adjustable Deceleration Time | 0 to 999 sec |
| Dynamic Braking | Yes |
| Height | 10.4 in |
| Width | 6.5 in |
| Depth | 8.5 in |
| Control Type | Keypad/Remote |
| Key Pad Lockout | Yes |
| Start/Stop Control | Programmable |
| Protection | Motor Overload, Short Circuit |
| Control Method | PWM ( Pulse width Modulation) |
| Accepts Input Control Signal | Yes |
| Display Type | LED |
| Displays | Motor Speed, Frequency, Voltage, Current, Last Fault, Heat sink Temperature, Drive Status |
| Digital Readout | Yes |
| For Use With | 3-Phase Squirrel Cage Induction Motor |
| Standards | CE, Ghost, IRAM, UL, cUL |
