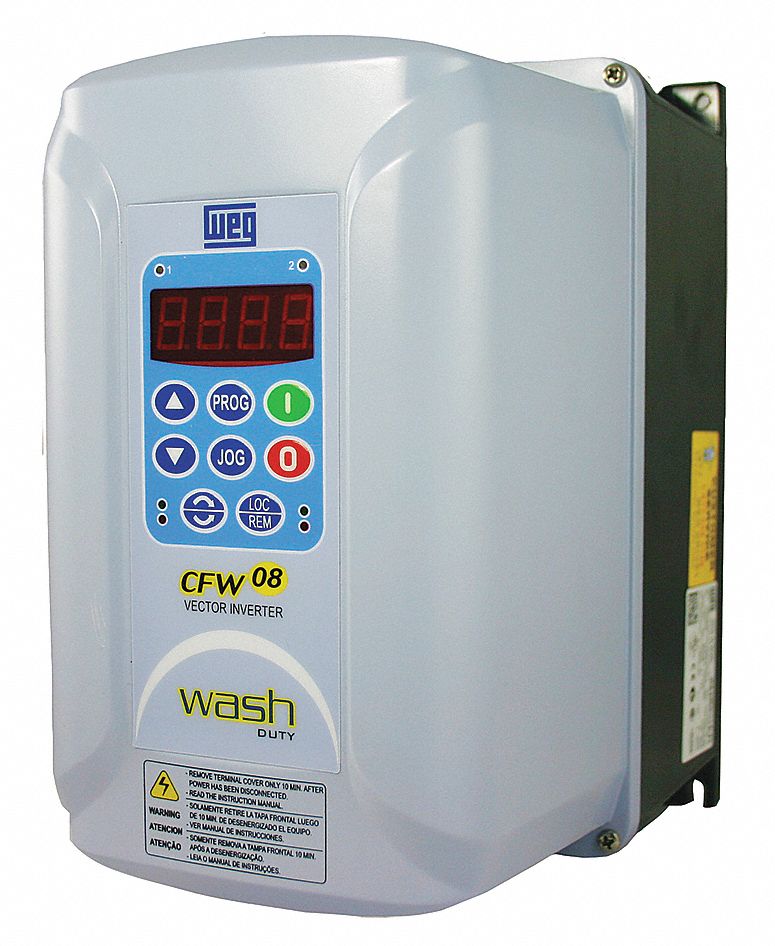

Weg CFW080280TDN4A1Z - Variable Frequency Drive 10 HP 230VAC

WEGSKU: C2948522
MPN : CFW080280TDN4A1Z
Weight : 19.18 lb


$1,926.47 $2,349.35

Availability : Usually Ships in 10-15 Business Days
ItemVariable Frequency Drive
Max. HP10 hp
EnclosureNEMA 4X
Input Voltage240V AC
Max. Output Amps28 A
Output Voltage240V AC
Input Phase AC3
Output Phase AC3
With Bypass / No BypassNo Bypass
With Line Contactor / No Line ContactorNo Line Contactor
Starting Torque150%
Input Frequency50/60 Hz
Output Frequency Range0 to 300 Hz
Adjustable Acceleration Time0 to 999 sec
Adjustable Deceleration Time0 to 999 sec
Dynamic BrakingYes
Height13.4 in
Width8.5 in
Depth8.5 in
Control TypeKeypad/Remote
Key Pad LockoutYes
Start/Stop ControlProgrammable
ProtectionMotor Overload, Short Circuit
Control MethodPWM ( Pulse width Modulation)
Accepts Input Control SignalYes
Display TypeLED
DisplaysMotor Speed, Frequency, Voltage, Current, Last Fault, Heat sink Temperature, Drive Status
Digital ReadoutYes
For Use With3-Phase Squirrel Cage Induction Motor
StandardsCE, Ghost, IRAM, UL, cUL
