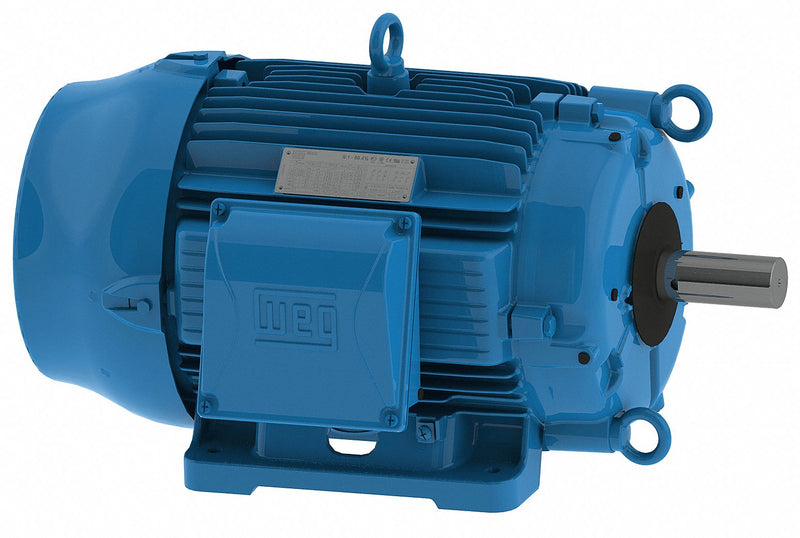

3-Phase NEMA Premium Energy-Efficient Cooling Tower Motors,Enclosure: totally enclosed fan-cooled Service factor: 1.25 Mounting: rigid base Insulation: Class F, with B temperature rise for longer life Max. ambient: 40C Thermal protection: none Bearings: ball Rotation: CW/CCW Inverter rated, 1000:1 variable torque Frame material: cast-iron Warranty: 3 yr.,Durable synthetic enamel alkyd resin paint resists corrosion. V-ring slingers and umbrella seal on both endshields protect bearings from moisture and contaminants. Multiple endbell drains provide for shaft-up, -down, or -horizontal mounting. Motors include threaded conduit box with automatic drain and rubber lead separators at the motor frame. Stainless steel laser-etched nameplate maintains information over long life. Motors are suitable for operation in 100% humidity and corrosive environments. For use in cooling tower applications where the motor is mounted in the airstream.,Meet IP55 enclosure rating. UL Recognized and CSA Certified.,Note: Motors are suitable for use at 50 Hz at rated HP and 1.25 service factor.
| Item | Cooling Tower Motor |
| Motor Application | Cooling Tower |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Fan-Cooled |
| HP | 25 |
| Nameplate RPM | 1765 |
| Frame | 284T |
| Motor Shaft Rotation | CW/CCW |
| Voltage | 230/460 |
| Full Load Amps | 59/29.5 |
| Phase | 3 |
| Hz | 60/50 |
| Motor Mounting Type | Rigid Base |
| Motor Mounting Position | All Angle |
| Motor Bearings | Ball |
| Motor Frame Material | Cast Iron |
| Motor Thermal Protection | None |
| Motor Service Factor | 1.25 |
| Ambient Temperature | 40 Degrees C |
| Shaft Dia. | 1 7/8 in |
| Shaft Length | 3 1/4 in |
| Length Less Shaft | 23 1/8 in |
| Overall Length | 26 7/16 in |
| Ins. Class | F |
| Duty | Continuous |
| Nominal Efficiency | 93.6 % |
| CC Number | CC029A |
| Motor Efficiency Group | NEMA Premium Efficient |
| Finish | Blue |
| Includes | Space Heater |
| Standards | CE, CSA Certified (LR38324), UL Recognized (E104590) |
| Warranty | 3 yr |
| RPM Range | 1701-1800 |
| Voltage Compatibility | 208, 208-220/440, 208-230, 208-230/460, 208-240, 220-230/460, 220/460, 230, 230/460, 240, 460 |
| Green Environmental Attribute | Product Contributes To Reducing Energy Consumption |
| Green Certification or Other | Green Certification or Other |
