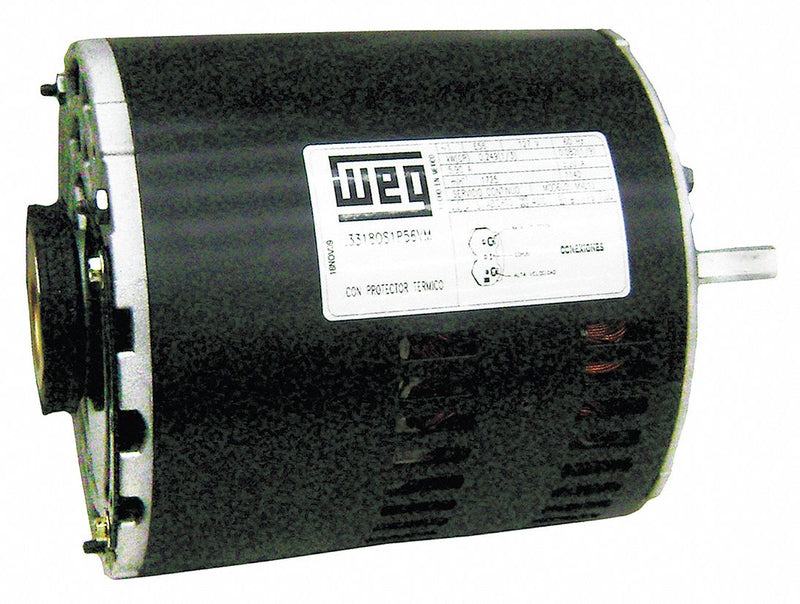

WEG Evaporative Cooler Motor, Capacitor-Start/Run, Open Dripproof, 1/3, 1 HP - 00182OS1AEC56

WEGSKU: C1566509
MPN : 00182OS1AEC56
Weight : 23.4 lb


$394.58 $481.20

Availability : Usually Ships in 7-10 Business Days

Evaporative Cooler Motors,Ring dia. 2-1/2" Enclosure: open dripproof Service factor: 1.0 Insulation: Class B Max. ambient: 40C Thermal protection: auto Bearings: ball Rotation: CWSE,Epoxy paint over a layer of zinc phosphate helps prevent corrosion. For use in evaporative coolers, exhaust fans, blowers, and air conditioning equipment.,UL Recognized.

ItemEvaporative Cooler Motor
Motor ApplicationHVAC/R
Motor Sub ApplicationEvaporator Cooler
Motor DesignCapacitor-Start/Run
Motor Enclosure DesignOpen Dripproof
HP1/3, 1
No. of Speeds2
Nameplate RPM1725/1140
Full Load Amps12.1/7.1
Motor Mounting TypeRing
Motor Thermal ProtectionAuto
Ins. ClassB
Motor Service Factor1
Motor BearingsBall
Ambient Temperature40 Degrees C
Max. Ambient Temp.40 Degrees C
Motor Shaft RotationCWSE
Length Less Shaft8 21/25 in
Overall Length10 24/25 in
Shaft Dia.5/8 in
Shaft Length1 15/16 in
Ring Dia.2 1/2 in
Resilient Ring Dia.2 1/2 in
Ring to Ring Center8 7/16 in
StandardsUL Recognized for US and Canada
RPM Range1701-1800
Voltage Compatibility115, 115/208-230, 115/230, 120, 120/240
