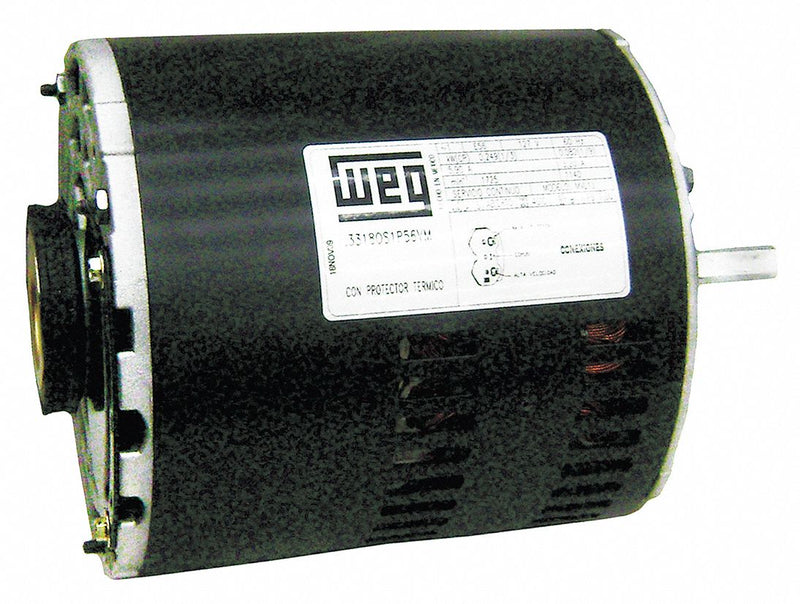

Evaporative Cooler Motors,Ring dia. 2-1/2" Enclosure: open dripproof Service factor: 1.0 Insulation: Class B Max. ambient: 40C Thermal protection: auto Bearings: ball Rotation: CWSE,Epoxy paint over a layer of zinc phosphate helps prevent corrosion. For use in evaporative coolers, exhaust fans, blowers, and air conditioning equipment.,UL Recognized.
| Item | Evaporative Cooler Motor |
| Motor Application | HVAC/R |
| Motor Sub Application | Evaporator Cooler |
| Motor Design | Split-Phase |
| Motor Enclosure Design | Open Dripproof |
| HP | 1/3 |
| No. of Speeds | 1 |
| Nameplate RPM | 1725 |
| Frame | 56Z |
| Voltage | 115 |
| Hz | 60 |
| Phase | 1 |
| Full Load Amps | 6.6 |
| Motor Mounting Type | Ring |
| Motor Thermal Protection | Auto |
| Ins. Class | B |
| Motor Service Factor | 1 |
| Motor Bearings | Ball |
| Ambient Temperature | 40 Degrees C |
| Max. Ambient Temp. | 40 Degrees C |
| Motor Shaft Rotation | CWSE |
| Length Less Shaft | 7 7/8 in |
| Overall Length | 9 9/16 in |
| Shaft Dia. | 1/2 in |
| Shaft Length | 1 11/16 in |
| Ring Dia. | 2 1/2 in |
| Resilient Ring Dia. | 2 1/2 in |
| Ring to Ring Center | 7 7/16 in |
| Standards | UL Recognized for US and Canada |
| RPM Range | 1701-1800 |
| Voltage Compatibility | 115, 115/208-230, 115/230, 120, 120/240 |
