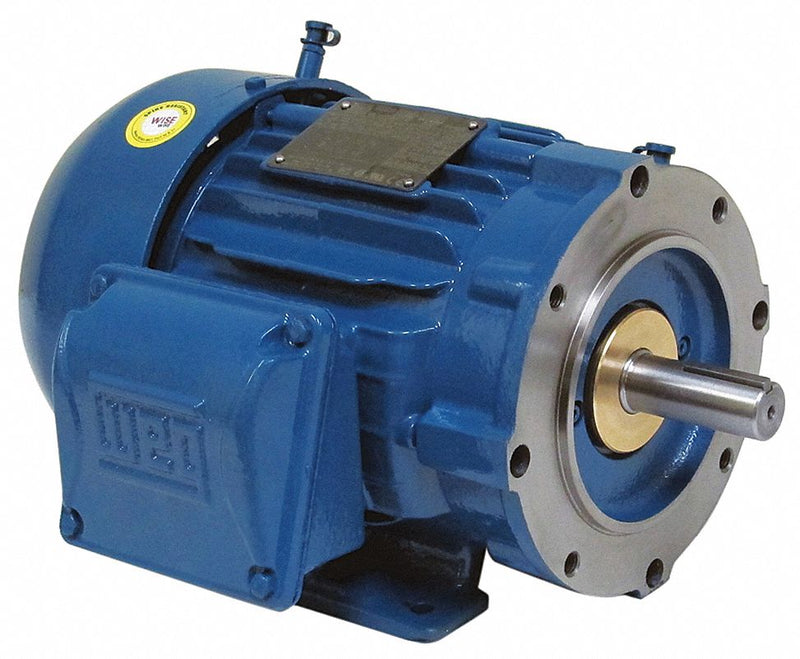

WEG 1 1/2 HP, General Purpose Motor, 3-Phase, 3495 Nameplate RPM, 575 Voltage, 143TC Frame - 00156ET3H143TC-W22

WEGSKU: C1487775
MPN : 00156ET3H143TC-W22
Weight : 40.8 lb
filler

Price:
$739.94 $902.37

Availability : Usually Ships in 7-10 Business Days

General Purpose Motor; Motor Application: General Application; Motor Design: 3-Phase; Motor Enclosure Design: Totally Enclosed Fan-Cooled; HP: 1 1/2; Nameplate RPM: 3495; Frame: 143TC; Voltage: 575; Hz: 60/50; Phase: 3; Full Load Amps: 1.5; No. of Speeds: 1; Motor Mounting Type: Rigid Base; Motor Thermal Protection: None; Ins. Class: F; Motor Service Factor: 1.25; Motor Bearings: Ball; Motor Frame Material: Cast Iron; Max. Ambient Temp.: 40 Degrees C; Motor Shaft Rotation: CW/CCW; Shaft Dia.: 7/8 in; Shaft Length: 2 1/4 in; Length Less Shaft: 10 1/8 in; Overall Length: 12 3/8 in; Motor Shaft Design: Keyed; Standards: CE, CSA, NOM, UL; Duty: Continuous; Motor Efficiency Group: NEMA Premium Efficient; Nominal Efficiency: 84 %; CC Number: CC029A; Manufacturers Warranty Length: 3 yr; Green Certification or Other Recognition: NEMA Premium(R) Rated

ItemGeneral Purpose Motor
Motor ApplicationGeneral Application
Motor Design3-Phase
Motor Enclosure DesignTotally Enclosed Fan-Cooled
HP1 1/2
Nameplate RPM3495
Frame143TC
Voltage575
Hz60/50
Phase3
Full Load Amps1.5
No. of Speeds1
Motor Mounting TypeRigid Base
Motor Thermal ProtectionNone
Ins. ClassF
Motor Service Factor1.25
Motor BearingsBall
Motor Frame MaterialCast Iron
Max. Ambient Temp.40 Degrees C
Motor Shaft RotationCW/CCW
Shaft Dia.7/8 in
Shaft Length2 1/4 in
Length Less Shaft10 1/8 in
Overall Length12 3/8 in
Motor Shaft DesignKeyed
StandardsCE, CSA, NOM, UL
DutyContinuous
Motor Efficiency GroupNEMA Premium Efficient
Nominal Efficiency84 %
CC NumberCC029A
Manufacturers Warranty Length3 yr
Green Certification or Other RecognitionNEMA Premium(R) Rated
