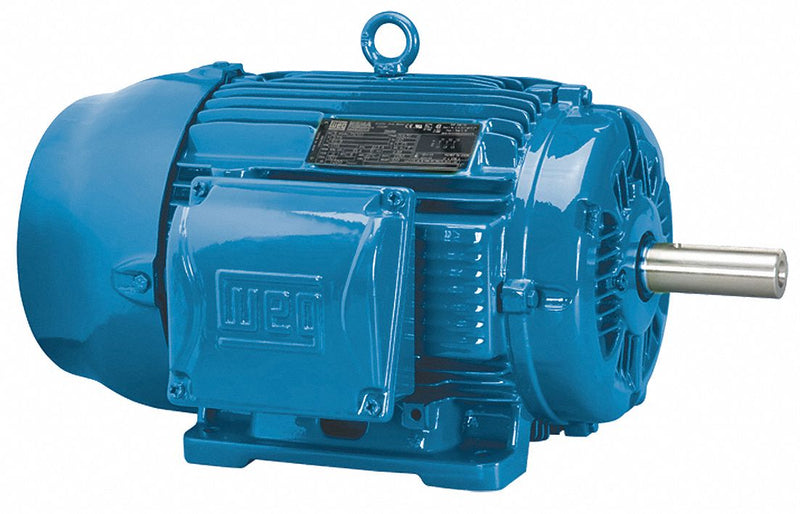

WEG 125 HP, General Purpose Motor, 3-Phase, 1185 Nameplate RPM, 230/460 Voltage, 444/5T Frame - 12512ET3G445T-W22

WEGSKU: C1506990
MPN : 12512ET3G445T-W22
Weight : 1751.0 lb
filler

Price:
$16,062.75 $19,588.72

Availability : Usually Ships in 4-6 Weeks

NEMA Premium energy-efficient motor has corrosion-resistant finish. V-ring slingers on both endshields block debris from entering bearing cavity. Automatic pressure-compensated drain plugs. Gasketed conduit boxes are threaded for easier installation. Stainless steel, laser-etched nameplate maintains information over long life. Not for cooling tower applications. Suitable for dusty, dirty, nonhazardous applications with pumps, ventilation equipment, machine tools, and other industrial equipment.

ItemGeneral Purpose Motor
Motor ApplicationGeneral Application
Motor Design3-Phase
Motor Enclosure DesignTotally Enclosed Fan-Cooled
HP125
Nameplate RPM1185
Frame444/5T
Voltage230/460
Hz60
Phase3
Full Load Amps143
No. of Speeds1
Motor Mounting TypeRigid Base
Motor Mounting PositionHorizontal
Motor Thermal ProtectionNone
Ins. ClassF
Motor Service Factor1.15
Motor BearingsBall
Motor Frame MaterialCast Iron
Max. Ambient Temp.40 Degrees C
Motor Shaft RotationCW/CCW
Shaft Dia.3 3/8 in
Shaft Length8 1/2 in
Length Less Shaft36 1/2 in
Overall Length44 15/16 in
Motor Shaft DesignKeyed
StandardsCE, CSA, NOM, UL
DutyContinuous
Motor Efficiency GroupNEMA Premium Efficient
Nominal Efficiency95 %
CC NumberCC029A
Manufacturers Warranty Length3 yr
Green Certification or Other RecognitionNEMA Premium(R) Rated
