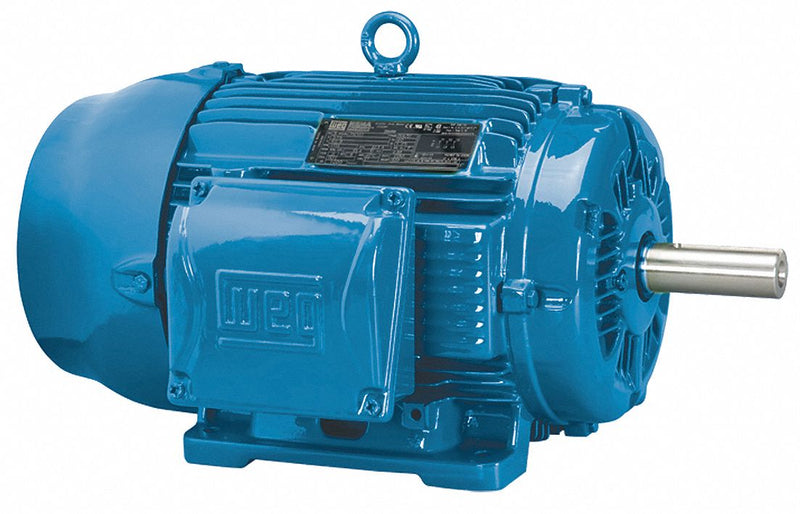

WEG 200 HP, General Purpose Motor, 3-Phase, 3570 Nameplate RPM, 230/460 Voltage, 445/7TS Frame - 20036ET3G447TS-W22

WEGSKU: C1506994
MPN : 20036ET3G447TS-W22
Weight : 1900.0 lb

filler

Price:
$26,139.10 $42,159.84

Availability : Usually Ships in 20 Business Days

NEMA Premium energy-efficient motor has corrosion-resistant finish. V-ring slingers on both endshields block debris from entering bearing cavity. Automatic pressure-compensated drain plugs. Gasketed conduit boxes are threaded for easier installation. Stainless steel, laser-etched nameplate maintains information over long life. Not for cooling tower applications. Suitable for dusty, dirty, nonhazardous applications with pumps, ventilation equipment, machine tools, and other industrial equipment.

ItemGeneral Purpose Motor
Motor ApplicationGeneral Application
Motor Design3-Phase
Motor Enclosure DesignTotally Enclosed Fan-Cooled
HP200
Nameplate RPM3570
Frame445/7TS
Voltage230/460
Hz60
Phase3
Full Load Amps219
No. of Speeds1
Motor Mounting TypeRigid Base
Motor Mounting PositionHorizontal
Motor Thermal ProtectionNone
Ins. ClassF
Motor Service Factor1.15
Motor BearingsBall
Motor Frame MaterialCast Iron
Max. Ambient Temp.40 Degrees C
Motor Shaft RotationCW/CCW
Shaft Dia.2 3/8 in
Shaft Length4 3/4 in
Length Less Shaft40 1/4 in
Overall Length44 15/16 in
Motor Shaft DesignKeyed
StandardsCE, CSA, NOM, UL
DutyContinuous
Motor Efficiency GroupNEMA Premium Efficient
Nominal Efficiency95.4 %
CC NumberCC029A
Manufacturers Warranty Length3 yr
Green Certification or Other RecognitionNEMA Premium(R) Rated
