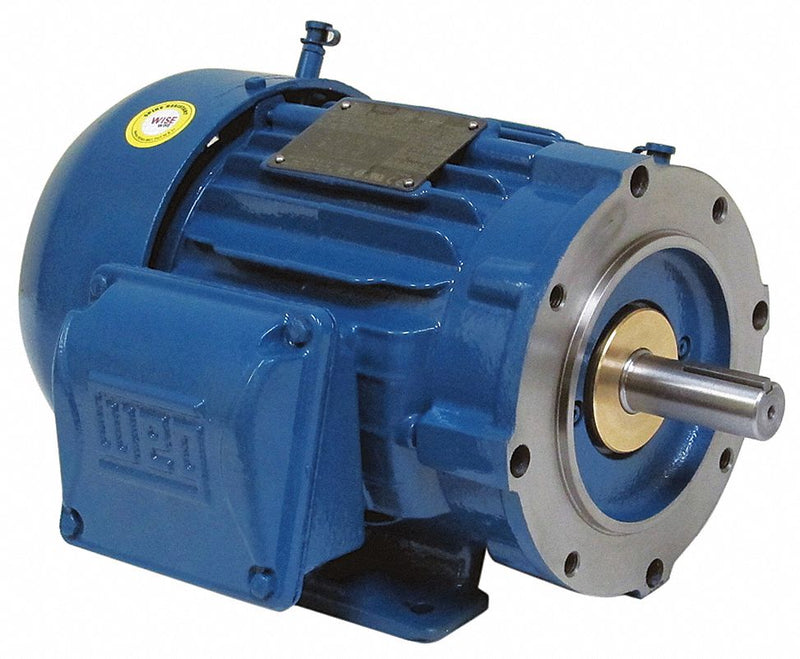

General Purpose Motor; Motor Application: General Application; Motor Design: 3-Phase; Motor Enclosure Design: Totally Enclosed Fan-Cooled; HP: 5; Nameplate RPM: 1755; Frame: 184TC; Voltage: 575; Hz: 60/50; Phase: 3; Full Load Amps: 5.1; No. of Speeds: 1; Motor Mounting Type: Rigid Base; Motor Thermal Protection: None; Ins. Class: F; Motor Service Factor: 1.25; Motor Bearings: Ball; Motor Frame Material: Cast Iron; Max. Ambient Temp.: 40 Degrees C; Motor Shaft Rotation: CW/CCW; Shaft Dia.: 1 1/8 in; Shaft Length: 2 3/4 in; Length Less Shaft: 13 1/8 in; Overall Length: 15 7/8 in; Motor Shaft Design: Keyed; Standards: CE, CSA, NOM, UL; Duty: Continuous; Motor Efficiency Group: NEMA Premium Efficient; Nominal Efficiency: 89.5 %; CC Number: CC029A; Manufacturers Warranty Length: 3 yr; Green Certification or Other Recognition: NEMA Premium(R) Rated
| Item | General Purpose Motor |
| Motor Application | General Application |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Fan-Cooled |
| HP | 5 |
| Nameplate RPM | 1755 |
| Frame | 184TC |
| Voltage | 575 |
| Hz | 60/50 |
| Phase | 3 |
| Full Load Amps | 5.1 |
| No. of Speeds | 1 |
| Motor Mounting Type | Rigid Base |
| Motor Thermal Protection | None |
| Ins. Class | F |
| Motor Service Factor | 1.25 |
| Motor Bearings | Ball |
| Motor Frame Material | Cast Iron |
| Max. Ambient Temp. | 40 Degrees C |
| Motor Shaft Rotation | CW/CCW |
| Shaft Dia. | 1 1/8 in |
| Shaft Length | 2 3/4 in |
| Length Less Shaft | 13 1/8 in |
| Overall Length | 15 7/8 in |
| Motor Shaft Design | Keyed |
| Standards | CE, CSA, NOM, UL |
| Duty | Continuous |
| Motor Efficiency Group | NEMA Premium Efficient |
| Nominal Efficiency | 89.5 % |
| CC Number | CC029A |
| Manufacturers Warranty Length | 3 yr |
| Green Certification or Other Recognition | NEMA Premium(R) Rated |
