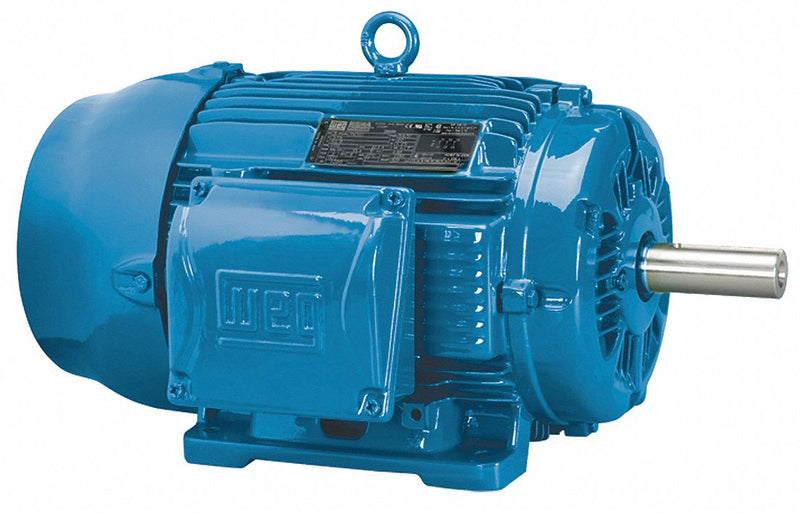

WEG 50 HP, General Purpose Motor, 3-Phase, 1180 Nameplate RPM, 230/460 Voltage, 364/5T Frame - 05012ET3E365T-W22

WEGSKU: C1506988
MPN : 05012ET3E365T-W22
Weight : 869.0 lb
filler

Price:
$10,240.22 $12,488.07

Availability : Usually Ships in 20-30 Business Days

NEMA Premium energy-efficient motor has corrosion-resistant finish. V-ring slingers on both endshields block debris from entering bearing cavity. Automatic pressure-compensated drain plugs. Gasketed conduit boxes are threaded for easier installation. Stainless steel, laser-etched nameplate maintains information over long life. Not for cooling tower applications. Suitable for dusty, dirty, nonhazardous applications with pumps, ventilation equipment, machine tools, and other industrial equipment.

ItemGeneral Purpose Motor
Motor ApplicationGeneral Application
Motor Design3-Phase
Motor Enclosure DesignTotally Enclosed Fan-Cooled
HP50
Nameplate RPM1180
Frame364/5T
Voltage230/460
Hz60
Phase3
Full Load Amps115/57.4
No. of Speeds1
Motor Mounting TypeRigid Base
Motor Mounting PositionHorizontal
Motor Thermal ProtectionNone
Ins. ClassF
Motor Service Factor1.25
Motor BearingsBall
Motor Frame MaterialCast Iron
Max. Ambient Temp.40 Degrees C
Motor Shaft RotationCW/CCW
Shaft Dia.2 3/8 in
Shaft Length5 7/8 in
Length Less Shaft28 3/8 in
Overall Length34 1/4 in
Motor Shaft DesignKeyed
StandardsCE, CSA, NOM, UL
DutyContinuous
Motor Efficiency GroupNEMA Premium Efficient
Nominal Efficiency94.1 %
CC NumberCC029A
Manufacturers Warranty Length3 yr
Green Certification or Other RecognitionNEMA Premium(R) Rated
