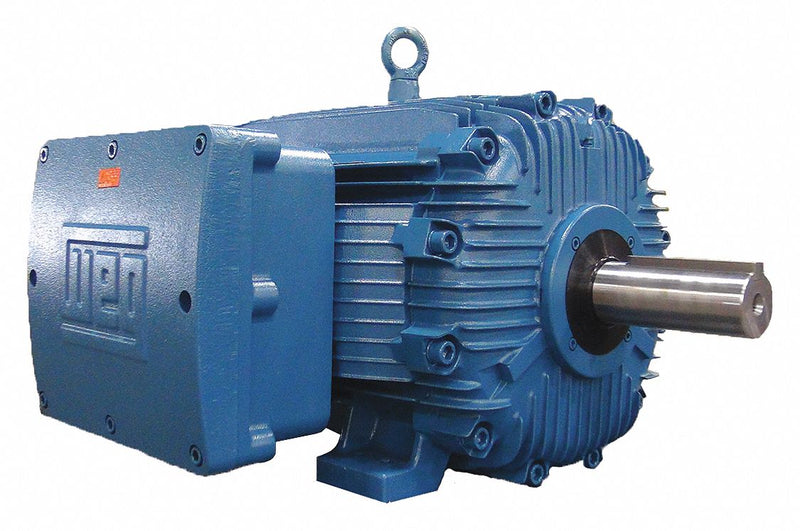

WEG 60 HP Hazardous Location Motor,3-Phase,1180 Nameplate RPM,208-230/460 Voltage,Frame 404T - 06012XT3E404T

WEGSKU: C1492649
MPN : 06012XT3E404T
Weight : 1222.0 lb
filler

Price:
$16,039.24 $19,560.05

Availability : Usually Ships in 7-10 Business Days

NEMA Premium 3-Phase Hazardous Location Motors,Frame material: cast-iron Enclosure: totally enclosed fan-cooled Service factor: 1.15 Insulation: Class F 60 Hz Max. ambient: 40C Thermal protection: T Stat Mounting: foot-mount Bearings: ball Rotation: CW/CCW Duty: continuous,Motors meet NEMA Premium and CEE requirements for energy efficiency. Use for blowers, fans, pumps, feed/flour mills, grain elevators, petroleum, material handling equipment, and other applications requiring a hazardous location motor.,UL Listed, CSA Certified.

ItemHazardous Location Motor
Motor ApplicationHazardous Location
Motor Design3-Phase
Motor Enclosure DesignTotally Enclosed Fan-Cooled
HP60
Nameplate RPM1180
Frame404T
NEMA DesignB
Motor Shaft RotationCW/CCW
Voltage208-230/460
Full Load Amps156-141/70.4
Phase3
Hz60
Motor Mounting TypeRigid Base
Motor BearingsBall
Motor Frame MaterialCast Iron
Motor Thermal ProtectionT-Stat
Motor Service Factor1.15
Hazardous Location Class1 C,D / 2 F,G
Max. Ambient Temp.40 Degrees C
Temp. CodeT3C
Motor Shaft DesignKeyed
Shaft Dia.2 7/8 in
Shaft Length7 1/4 in
Length Less Shaft30 13/16 in
Overall Length38 1/16 in
Ins. ClassF
DutyContinuous
Nominal Efficiency94.5 %
CC NumberCC029A
Motor Efficiency GroupNEMA Premium Efficient
StandardsUL Listed (E87848), CSA Certified (LR50962)
Green Environmental AttributeProduct Contributes To Reducing Energy Consumption
Green Certification or Other RecognitionNEMA Premium(R) Rated
