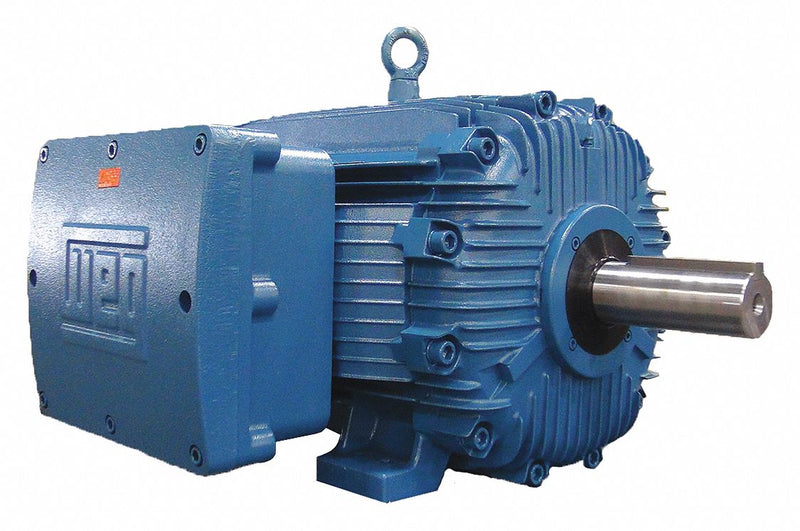

NEMA Premium 3-Phase Hazardous Location Motors,Frame material: cast-iron Enclosure: totally enclosed fan-cooled Service factor: 1.15 Insulation: Class F 60 Hz Max. ambient: 40C Thermal protection: T Stat Mounting: foot-mount Bearings: ball Rotation: CW/CCW Duty: continuous,Motors meet NEMA Premium and CEE requirements for energy efficiency. Use for blowers, fans, pumps, feed/flour mills, grain elevators, petroleum, material handling equipment, and other applications requiring a hazardous location motor.,UL Listed, CSA Certified.
| Item | Hazardous Location Motor |
| Motor Application | Hazardous Location |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Fan-Cooled |
| HP | 75 |
| Nameplate RPM | 1780 |
| Frame | 365T |
| NEMA Design | B |
| Motor Shaft Rotation | CW/CCW |
| Voltage | 208-230/460 |
| Full Load Amps | 184-166/83.2 |
| Phase | 3 |
| Hz | 60 |
| Motor Mounting Type | Rigid Base |
| Motor Bearings | Ball |
| Motor Frame Material | Cast Iron |
| Motor Thermal Protection | T-Stat |
| Motor Service Factor | 1.15 |
| Hazardous Location Class | 1 C,D / 2 F,G |
| Max. Ambient Temp. | 40 Degrees C |
| Temp. Code | T3C |
| Motor Shaft Design | Keyed |
| Shaft Dia. | 2 3/8 in |
| Shaft Length | 5 7/8 in |
| Length Less Shaft | 27 13/16 in |
| Overall Length | 33 11/16 in |
| Ins. Class | F |
| Duty | Continuous |
| Nominal Efficiency | 95.4 % |
| CC Number | CC029A |
| Motor Efficiency Group | NEMA Premium Efficient |
| Standards | UL Listed (E87848), CSA Certified (LR50962) |
| Green Environmental Attribute | Product Contributes To Reducing Energy Consumption |
| Green Certification or Other Recognition | NEMA Premium(R) Rated |
