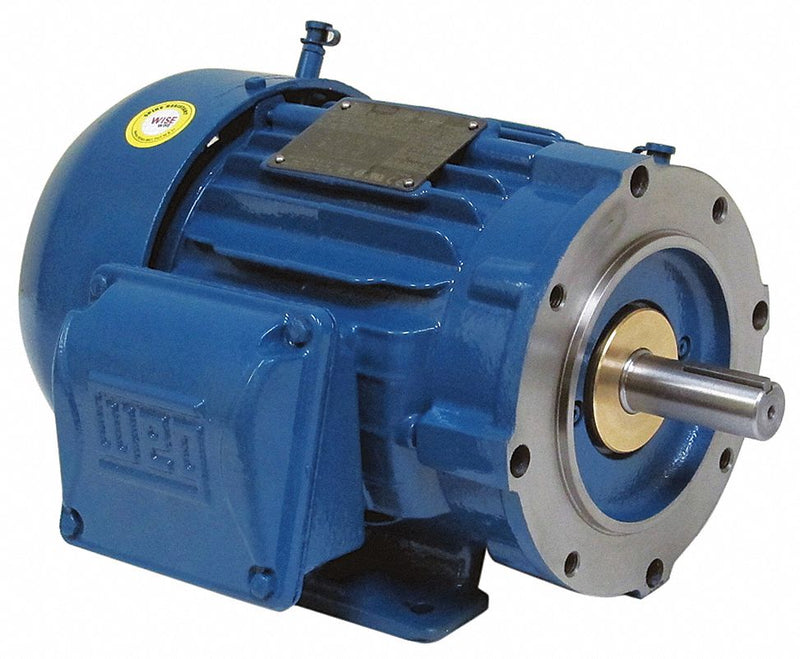

These totally enclosed fan-cooled motors are for dusty, dirty, nonhazardous applications, and are especially suited for pulp, paper, and steel mills, petrochemical, and applications requiring severe-duty long-life motors. Internal and external corrosion-resistant finish with stainless steel nameplate. Feature Inpro-seal on drive end, and 50,000-hr. extended bearing life.
| Item | IEEE 841 Motor |
| Motor Application | General Application |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Fan-Cooled |
| HP | 1 |
| Nameplate RPM | 1800 |
| Frame | 143TC |
| Voltage | 460 |
| Hz | 60 |
| Phase | 3 |
| Full Load Amps | 1.4 |
| No. of Speeds | 1 |
| Motor Mounting Type | Rigid Base |
| Motor Thermal Protection | None |
| Ins. Class | F |
| Motor Service Factor | 1.25 |
| Motor Bearings | Ball |
| Motor Frame Material | Cast Iron |
| Max. Ambient Temp. | 40 Degrees C |
| Motor Shaft Rotation | CW/CCW |
| Shaft Dia. | 7/8 in |
| Shaft Length | 2 1/4 in |
| Length Less Shaft | 10 1/8 in |
| Overall Length | 12 3/8 in |
| Motor Shaft Design | Keyed |
| Standards | CE, CSA, NOM, UL |
| Duty | Continuous |
| Motor Efficiency Group | NEMA Premium Efficient |
| Nominal Efficiency | 85.5 % |
| CC Number | CC029A |
| Manufacturers Warranty Length | 3 yr |
