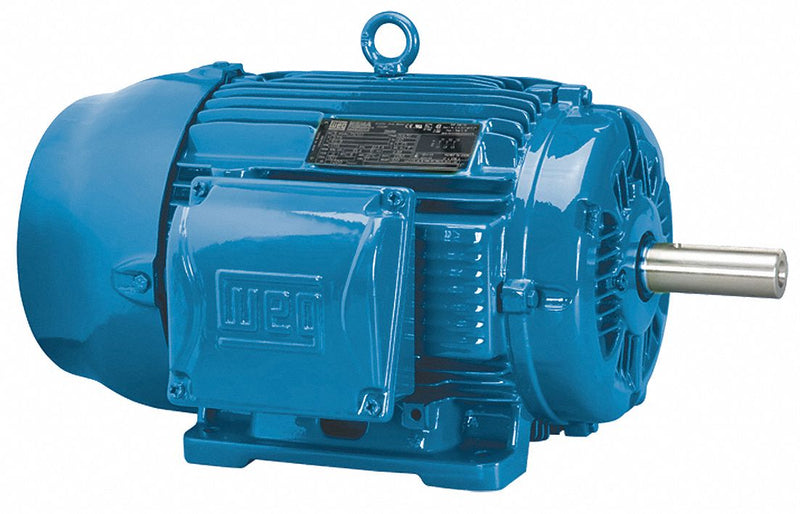

WEG 1 1/2 HP, General Purpose Motor, 3-Phase, 1165 Nameplate RPM, 575 Voltage, 182T Frame - 00152ET3H182T-W22

WEGSKU: C1492799
MPN : 00152ET3H182T-W22
Weight : 89.35 lb

filler

Price:
$865.27 $1,395.59

Availability : Usually Ships in 10 Business Days

General Purpose Motor; Motor Application: General Application; Motor Design: 3-Phase; Motor Enclosure Design: Totally Enclosed Fan-Cooled; HP: 1 1/2; Nameplate RPM: 1165; Frame: 182T; Voltage: 575; Hz: 60; Phase: 3; Full Load Amps: 1.9; No. of Speeds: 1; Motor Mounting Type: Rigid Base; Motor Mounting Position: Horizontal; Motor Thermal Protection: None; Ins. Class: F; Motor Service Factor: 1.25; Motor Bearings: Ball; Motor Frame Material: Cast Iron; Max. Ambient Temp.: 40 Degrees C; Motor Shaft Rotation: CW/CCW; Shaft Dia.: 1 1/8 in; Shaft Length: 2 3/4 in; Length Less Shaft: 12 1/8 in; Overall Length: 14 7/8 in; Motor Shaft Design: Keyed; Standards: CE, CSA, NOM, UL; Duty: Continuous; Motor Efficiency Group: NEMA Premium Efficient; Nominal Efficiency: 87.5 %; CC Number: CC029A; Manufacturers Warranty Length: 1 yr; Green Certification or Other Recognition: NEMA Premium(R) Rated

ItemGeneral Purpose Motor
Motor ApplicationGeneral Application
Motor Design3-Phase
Motor Enclosure DesignTotally Enclosed Fan-Cooled
HP1 1/2
Nameplate RPM1165
Frame182T
Voltage575
Hz60
Phase3
Full Load Amps1.9
No. of Speeds1
Motor Mounting TypeRigid Base
Motor Mounting PositionHorizontal
Motor Thermal ProtectionNone
Ins. ClassF
Motor Service Factor1.25
Motor BearingsBall
Motor Frame MaterialCast Iron
Max. Ambient Temp.40 Degrees C
Motor Shaft RotationCW/CCW
Shaft Dia.1 1/8 in
Shaft Length2 3/4 in
Length Less Shaft12 1/8 in
Overall Length14 7/8 in
Motor Shaft DesignKeyed
StandardsCE, CSA, NOM, UL
DutyContinuous
Motor Efficiency GroupNEMA Premium Efficient
Nominal Efficiency87.5 %
CC NumberCC029A
Manufacturers Warranty Length1 yr
Green Certification or Other RecognitionNEMA Premium(R) Rated
