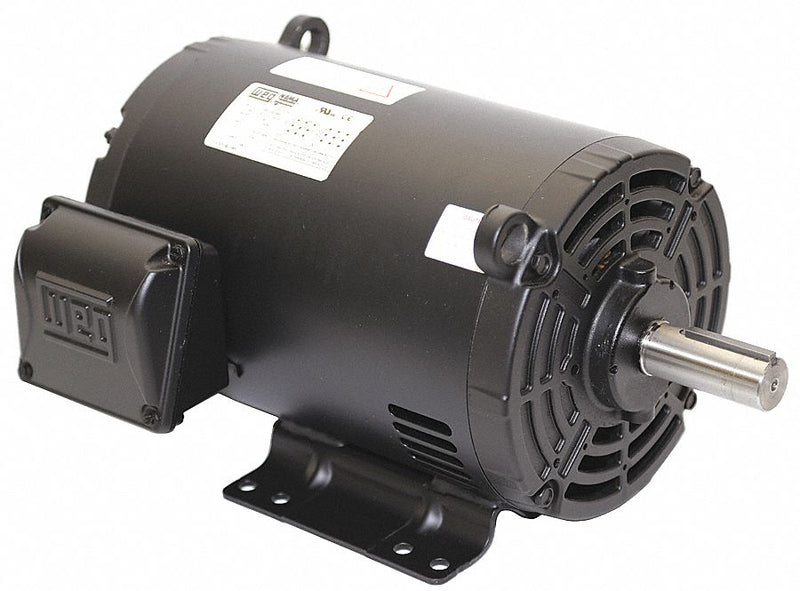

Featuring a corrosion-resistant finish, this motor is suitable for clean, dry, nonhazardous applications with pumps, ventilation equipment, machine tools, and other industrial equipment. The gasketed conduit box is threaded for easier installation. The stainless steel, laser-etched nameplate maintains information over long life.
| Item | General Purpose Motor |
| Motor Application | General Application |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Open Dripproof |
| HP | 3 |
| Nameplate RPM | 3480 |
| Frame | 143/5T |
| Voltage | 230/460 |
| Hz | 60 |
| Phase | 3 |
| Full Load Amps | 7.2/3.6 |
| No. of Speeds | 1 |
| Motor Mounting Type | Rigid Base |
| Motor Mounting Position | Horizontal |
| Motor Thermal Protection | None |
| Ins. Class | F |
| Motor Service Factor | 1.15 |
| Motor Bearings | Ball |
| Motor Frame Material | Rolled Steel |
| Max. Ambient Temp. | 40 Degrees C |
| Motor Shaft Rotation | CW/CCW |
| Shaft Dia. | 7/8 in |
| Shaft Length | 2 1/4 in |
| Length Less Shaft | 10 7/64 in |
| Overall Length | 12 7/16 in |
| Motor Shaft Design | Keyed |
| Standards | CSA (70014057), UL (E104590 |
| Duty | Continuous |
| Motor Efficiency Group | NEMA Premium Efficient |
| Nominal Efficiency | 85.5 % |
| CC Number | CC029A |
| Inverter Rated | Yes |
| Manufacturers Warranty Length | 3 yr |
| Green Environmental Attribute | Does not Contain Formaldehyde |
| Green Certification or Other Recognition | NEMA Premium(R) Rated |
