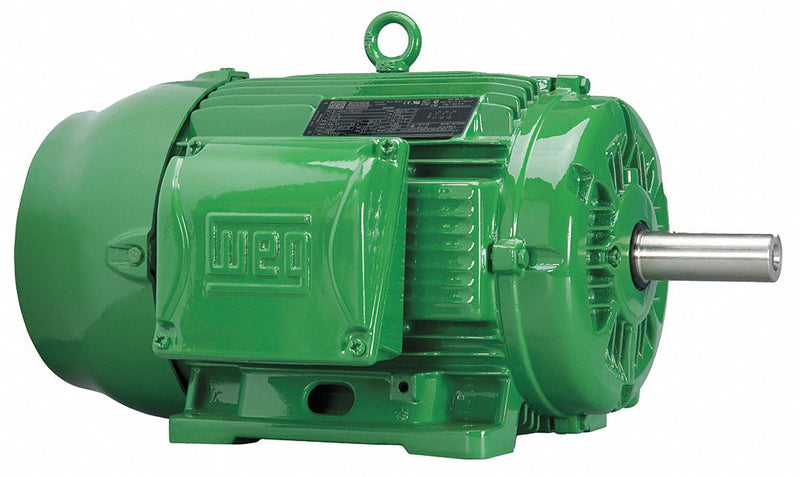

WEG 50 HP, General Purpose Motor, 3-Phase, 3570 Nameplate RPM, 230/460 Voltage, 326TS Frame - 05036EG3E326TS-W22

WEGSKU: C1491235
MPN : 05036EG3E326TS-W22
Weight : 636.0 lb
filler

Price:
$5,119.75 $6,243.60

Availability : Usually Ships in 10-15 Business Days

Super Premium motor has corrosion-resistant finish. V-ring slingers on both endshields block debris from entering bearing cavity. Automatic pressure-compensated drain plugs. Gasketed conduit boxes are threaded for easier installation. Stainless steel, laser-etched nameplate maintains information over long life. Not for cooling tower applications. Suitable for dusty, dirty, nonhazardous applications with pumps, ventilation equipment, machine tools, and other industrial equipment.

ItemGeneral Purpose Motor
Motor ApplicationGeneral Application
Motor Design3-Phase
Motor Enclosure DesignTotally Enclosed Fan-Cooled
HP50
Nameplate RPM3570
Frame326TS
Voltage230/460
Hz60/50
Phase3
Full Load Amps114/57.1
No. of Speeds1
Motor Mounting TypeRigid Base
Motor Mounting PositionHorizontal
Motor Thermal ProtectionNone
Ins. ClassF
Motor Service Factor1.25
Motor BearingsBall
Motor Frame MaterialCast Iron
Max. Ambient Temp.40 Degrees C
Motor Shaft RotationCW/CCW
Shaft Dia.1 7/8 in
Shaft Length3 3/4 in
Length Less Shaft25 7/8 in
Overall Length29 5/8 in
Motor Shaft DesignKeyed
StandardsCE, CSA, NOM, UL
DutyContinuous
Motor Efficiency GroupNEMA Premium Efficient
Nominal Efficiency94.5 %
CC NumberCC029A
Manufacturers Warranty Length3 yr
Green Certification or Other RecognitionNEMA Premium(R) Rated
