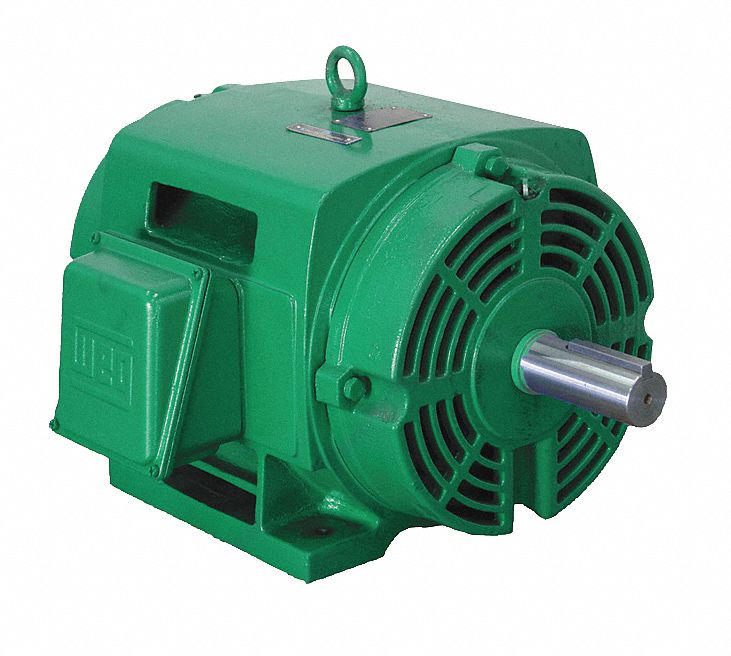

WEG 20 HP, General Purpose Motor, 3-Phase, 3520 Nameplate RPM, 230/460 Voltage, 254T Frame - 02036OT3E254T-W40

WEGSKU: C1547693
MPN : 02036OT3E254T-W40
Weight : 210.0 lb


$1,774.42 $2,163.93

Availability : Usually Ships in 7-10 Business Days

Featuring a corrosion-resistant finish, this motor is suitable for clean, dry, nonhazardous applications with pumps, ventilation equipment, machine tools, and other industrial equipment. The gasketed conduit box is threaded for easier installation. The stainless steel, laser-etched nameplate maintains information over long life.

ItemGeneral Purpose Motor
Motor ApplicationGeneral Application
Motor Design3-Phase
Motor Enclosure DesignOpen Dripproof
Nameplate RPM3520
Full Load Amps49.2/24.6
No. of Speeds1
Motor Mounting TypeRigid Base
Motor Mounting PositionHorizontal
Motor Thermal ProtectionNone
Ins. ClassF
Motor Service Factor1.15
Motor BearingsBall
Motor Frame MaterialCast Iron
Max. Ambient Temp.40 Degrees C
Motor Shaft RotationCW/CCW
Shaft Dia.1 5/8 in
Shaft Length4 in
Length Less Shaft16 11/16 in
Overall Length20 11/16 in
Motor Shaft DesignKeyed
StandardsCE, CSA, UL
Motor Efficiency GroupNEMA Premium Efficient
Nominal Efficiency91 %
CC NumberCC029A
Manufacturers Warranty Length3 yr
Green Environmental AttributeProduct Contributes To Reducing Energy Consumption
Green Certification or Other RecognitionNEMA Premium(R) Rated
