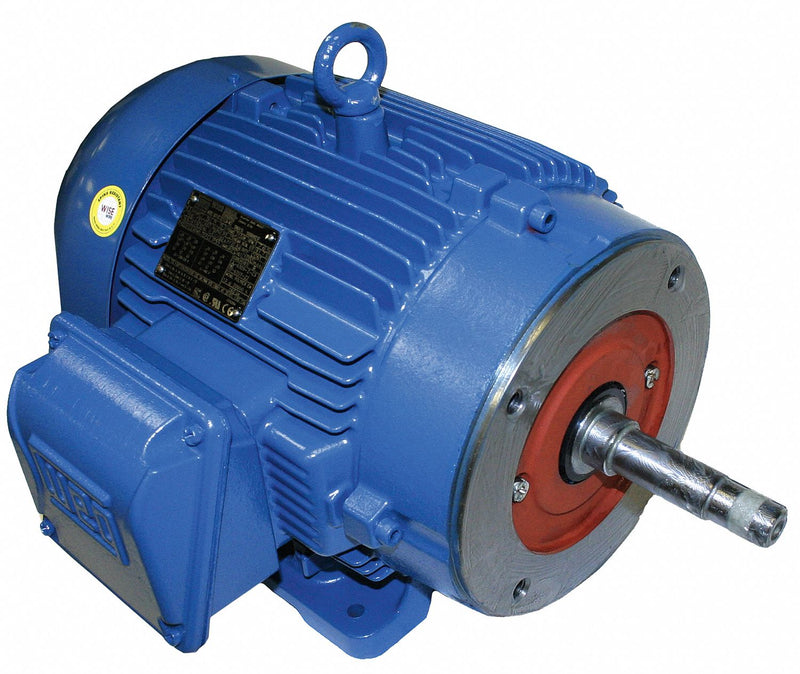

Close-Coupled Pump Motor; Motor Application: Pump; Motor Sub Application: Close-Coupled Pump; Motor Design: 3-Phase; Motor Enclosure Design: Totally Enclosed Fan-Cooled; HP: 20; Nameplate RPM: 3520; Frame: 254JP; Motor Shaft Rotation: CW/CCW; Voltage: 575; Full Load Amps: 19; Phase: 3; Hz: 60; Motor Mounting Type: Face/Base; Motor Bearings: Ball; Motor Frame Material: Cast Iron; Motor Thermal Protection: None; Motor Service Factor: 1.25; Max. Ambient Temp.: 40 Degrees C; Shaft Dia.: 1 1/4 in; Shaft Length: 8 1/4 in; Motor Shaft Design: JP Threaded; Length Less Shaft: 18 13/16 in; Overall Length: 27 1/16 in; Ins. Class: F; Duty: Continuous; Nominal Efficiency: 90.2 %; CC Number: CC029A; Motor Efficiency Group: NEMA Premium Efficient; Inverter Rated: Yes; Standards: CE Compliant, CSA Certified, UL Recognized; Voltage Compatibility: 575
| Item | Close-Coupled Pump Motor |
| Motor Application | Pump |
| Motor Sub Application | Close-Coupled Pump |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Fan-Cooled |
| HP | 20 |
| Nameplate RPM | 3520 |
| Frame | 254JP |
| Motor Shaft Rotation | CW/CCW |
| Voltage | 575 |
| Full Load Amps | 19 |
| Phase | 3 |
| Hz | 60 |
| Motor Mounting Type | Face/Base |
| Motor Bearings | Ball |
| Motor Frame Material | Cast Iron |
| Motor Thermal Protection | None |
| Motor Service Factor | 1.25 |
| Max. Ambient Temp. | 40 Degrees C |
| Shaft Dia. | 1 1/4 in |
| Shaft Length | 8 1/4 in |
| Motor Shaft Design | JP Threaded |
| Length Less Shaft | 18 13/16 in |
| Overall Length | 27 1/16 in |
| Ins. Class | F |
| Duty | Continuous |
| Nominal Efficiency | 90.2 % |
| CC Number | CC029A |
| Motor Efficiency Group | NEMA Premium Efficient |
| Inverter Rated | Yes |
| Standards | CE Compliant, CSA Certified, UL Recognized |
| Voltage Compatibility | 575 |
