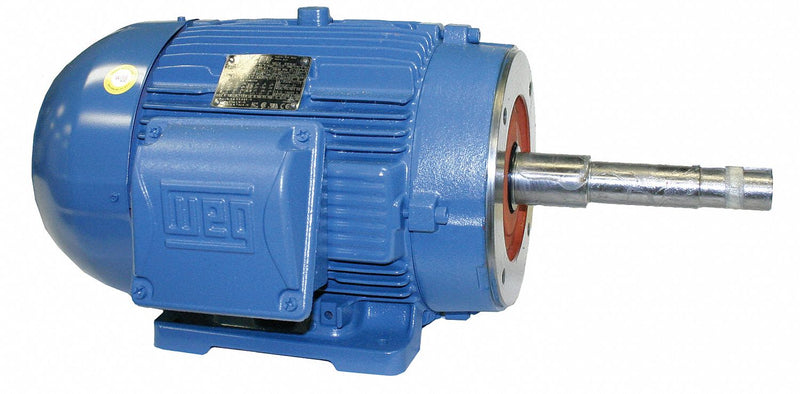

WEG 60 HP Close-Coupled Pump Motor,3-Phase,1780 Nameplate RPM,208-230/460 Voltage,364/5JP - 06018ET3E364JP-W22

WEGSKU: C1492837
MPN : 06018ET3E364JP-W22
Weight : 1035.6 lb
filler

Price:
$8,844.61 $10,786.11

Availability : Usually Ships in 10-15 Business Days

3-Phase NEMA Premium Energy-Efficient Close-Coupled Pump Motors,Mounting: face with base Thermal protection: none Insulation: Class F, with B temperature rise for longer life Voltage: 208-230/460V Max. ambient: 40C Rotation: CW/CCW Inverter rated: 20:1 constant, 1000:1 variable torque Service factor: 1.25 Open enclosure, 1.15 for Totally Enclosed models,Close-coupled motors meet or exceed NEMA Premium requirement for energy efficiency. For additional ratings, see Grainger.com. For use in water pumping, process, transfer, and circulating pumps. TEFC motors are designed for severe-duty applications.,All motors are UL Recognized, CSA Certified, and CE Compliant.

ItemClose-Coupled Pump Motor
Motor ApplicationPump
Motor Sub ApplicationClose-Coupled Pump
Motor Design3-Phase
Motor Enclosure DesignTotally Enclosed Fan-Cooled
HP60
Nameplate RPM1780
Frame364/5JP
Motor Shaft RotationCW/CCW
Voltage208-230/460
Full Load Amps151-137/68.3
Phase3
Hz60
Motor Mounting TypeFace/Base
Motor BearingsBall
Motor Frame MaterialCast Iron
Motor Thermal ProtectionNone
Motor Service Factor1.25
Max. Ambient Temp.40 Degrees C
Shaft Dia.1 5/8 in
Shaft Length7 7/8 in
Motor Shaft DesignJP Threaded
Length Less Shaft28 1/16 in
Overall Length35 15/16 in
Ins. ClassF
DutyContinuous
Nominal Efficiency95 %
CC NumberCC029A
Motor Efficiency GroupNEMA Premium Efficient
Inverter RatedYes
StandardsCE Compliant, CSA Certified, UL Recognized
Voltage Compatibility208, 208-220/440, 208-230, 208-230/460, 208-240, 220-230/460, 220/460, 230, 230/460, 240, 460
