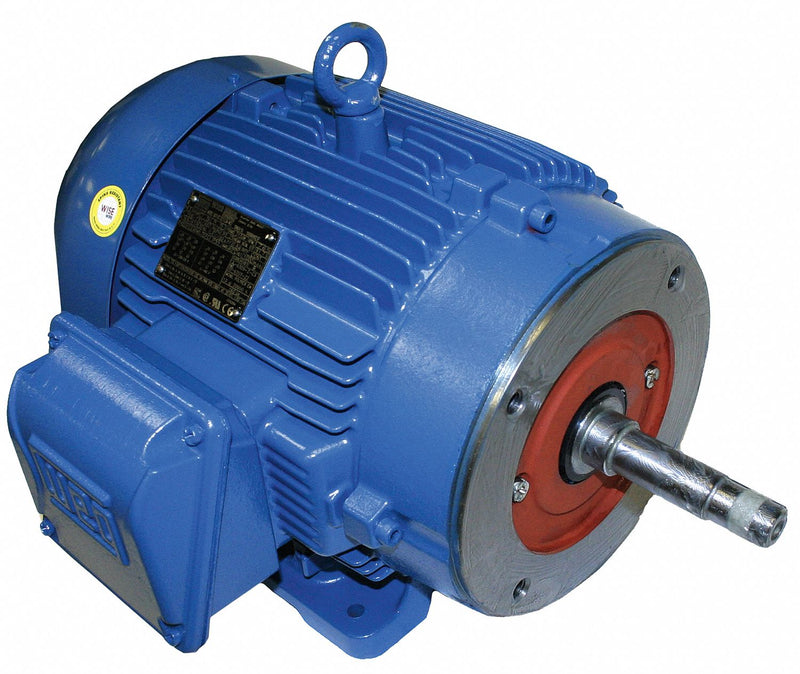

WEG 75 HP Close-Coupled Pump Motor,3-Phase,3560 Nameplate RPM,208-230/460 Voltage,364/5JM - 07536ET3E365JM-W22

WEGSKU: C1492857
MPN : 07536ET3E365JM-W22
Weight : 965.0 lb

filler

Price:
$15,934.80 $25,701.29

Availability : Usually Ships in 10 Business Days

3-Phase NEMA Premium Energy-Efficient Close-Coupled Pump Motors,Mounting: face with base Thermal protection: none Insulation: Class F, with B temperature rise for longer life Voltage: 208-230/460V Max. ambient: 40C Rotation: CW/CCW Inverter rated: 20:1 constant, 1000:1 variable torque Service factor: 1.25 Open enclosure, 1.15 for Totally Enclosed models,Close-coupled motors meet or exceed NEMA Premium requirement for energy efficiency. For additional ratings, see Grainger.com. For use in water pumping, process, transfer, and circulating pumps. TEFC motors are designed for severe-duty applications.,All motors are UL Recognized, CSA Certified, and CE Compliant.

ItemClose-Coupled Pump Motor
Motor ApplicationPump
Motor Sub ApplicationClose-Coupled Pump
Motor Design3-Phase
Motor Enclosure DesignTotally Enclosed Fan-Cooled
HP75
Nameplate RPM3560
Frame364/5JM
Motor Shaft RotationCW/CCW
Voltage208-230/460
Full Load Amps181-164/81.9
Phase3
Hz60
Motor Mounting TypeFace/Base
Motor BearingsBall
Motor Frame MaterialCast Iron
Motor Thermal ProtectionNone
Motor Service Factor1.25
Max. Ambient Temp.40 Degrees C
Shaft Dia.1 1/4 in
Shaft Length5 in
Motor Shaft DesignJM Threaded
Length Less Shaft28 5/16 in
Overall Length33 5/16 in
Ins. ClassF
DutyContinuous
Nominal Efficiency93.6 %
CC NumberCC029A
Motor Efficiency GroupNEMA Premium Efficient
Inverter RatedYes
StandardsCE Compliant, CSA Certified, UL Recognized
Voltage Compatibility208, 208-220/440, 208-230, 208-230/460, 208-240, 220-230/460, 220/460, 230, 230/460, 240, 460
