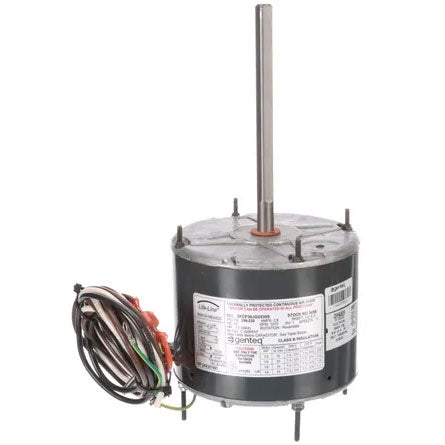

Fasco 3458 Multi-HP Fan Motor, 1/3 to 1/6 HP, PSC, 1075 RPM, 208-230V

FascoSKU: c2091832
MPN : 3458
Weight : 15.0 lb
filler

Price:
$158.36 $193.12

Availability : Usually Ships in 3-5 Business Days
  • Features: Rheem mounting holes, Slinger ring

Item: Direct Drive Blower Motor, Motor Type: PSC, HP: 1/3 to 1/6, Nameplate RPM: 1075, Voltage: 208-230, Enclosure: Totally Enclosed, Rotation: CW/CCW, Hz: 60, Phase: 1, Speeds: 1, Insulation Class: B, Bearings: Ball, Base: None, Shaft Number: 1, "C" Dim: 11.05, Thermal Protection: Yes, Cooling: Air Over, Capacitor: 7.5M 370V.

ItemDirect Drive Blower Motor
Motor TypePSC
HP1/3 to 1/6
Nameplate RPM1075
Voltage208-230
EnclosureTotally Enclosed
RotationCW/CCW
Hz60
Phase1
Speeds1
Insulation ClassB
BearingsBall
BaseNone
Shaft Number1
"C" Dim11.05
Thermal ProtectionYes
CoolingAir Over
Capacitor7.5M 370V
