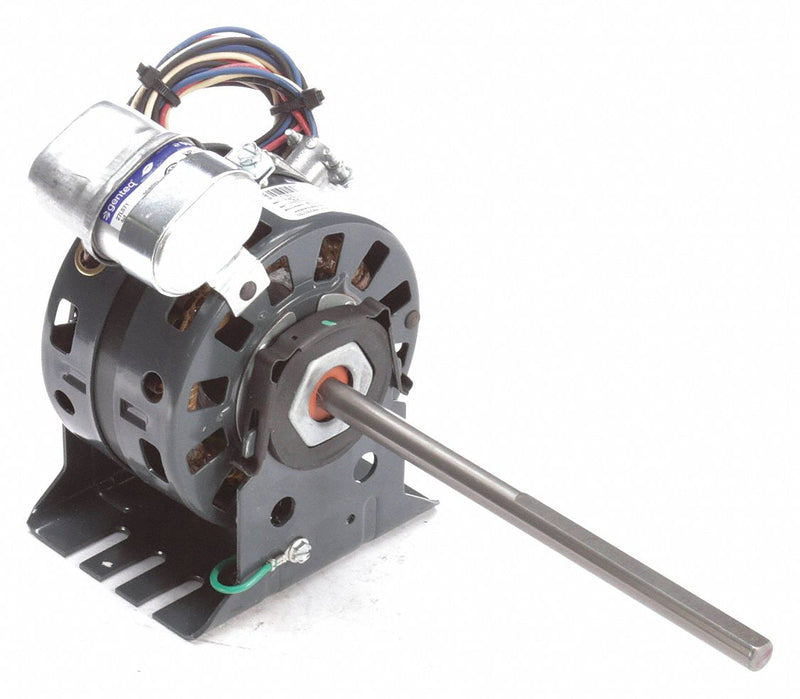

OEM Replacement Brand: IEC; Item: Condenser Fan Motor; Motor Design: Permanent Split Capacitor; Phase: 1; HP: 1/30; No. of Speeds: 3; Voltage: 115-127; Motor Shaft Rotation: CWSE; Frame: 42; Motor Enclosure Design: Open Air-Over; Motor Mounting Type: Rigid Base; Shaft Dia.: 1/2 in; Shaft Length: 9 in; Number of Shafts: 1; Motor Thermal Protection: Auto; Nameplate RPM: 1100; Motor Application: OEM Replacement; Motor Sub Application: Condenser Fan; Full Load Amps: 0.53; Hz: 60; Ins. Class: B; Max. Ambient Temp.: 40 Degrees C; Motor Service Factor: 1; Motor Bearings: Sleeve; Motor Shaft Design: Flat; Body Dia.: 5 7/64 in; Length Less Shaft: 3 in; Overall Length: 12 1/8 in; Stud Size: 8-32 X 1/8 in; Replacement For: 5KCP29BK8382S; Application: Fans and Blowers
| OEM Replacement Brand | IEC |
| Item | Condenser Fan Motor |
| Motor Design | Permanent Split Capacitor |
| Phase | 1 |
| HP | 1/30 |
| No. of Speeds | 3 |
| Voltage | 115-127 |
| Motor Shaft Rotation | CWSE |
| Frame | 42 |
| Motor Enclosure Design | Open Air-Over |
| Motor Mounting Type | Rigid Base |
| Shaft Dia. | 1/2 in |
| Shaft Length | 9 in |
| Number of Shafts | 1 |
| Motor Thermal Protection | Auto |
| Nameplate RPM | 1100 |
| Motor Application | OEM Replacement |
| Motor Sub Application | Condenser Fan |
| Full Load Amps | 0.53 |
| Hz | 60 |
| Ins. Class | B |
| Max. Ambient Temp. | 40 Degrees C |
| Motor Service Factor | 1 |
| Motor Bearings | Sleeve |
| Motor Shaft Design | Flat |
| Body Dia. | 5 7/64 in |
| Length Less Shaft | 3 in |
| Overall Length | 12 1/8 in |
| Stud Size | 8-32 X 1/8 in |
| Replacement For | 5KCP29BK8382S |
| Application | Fans and Blowers |
