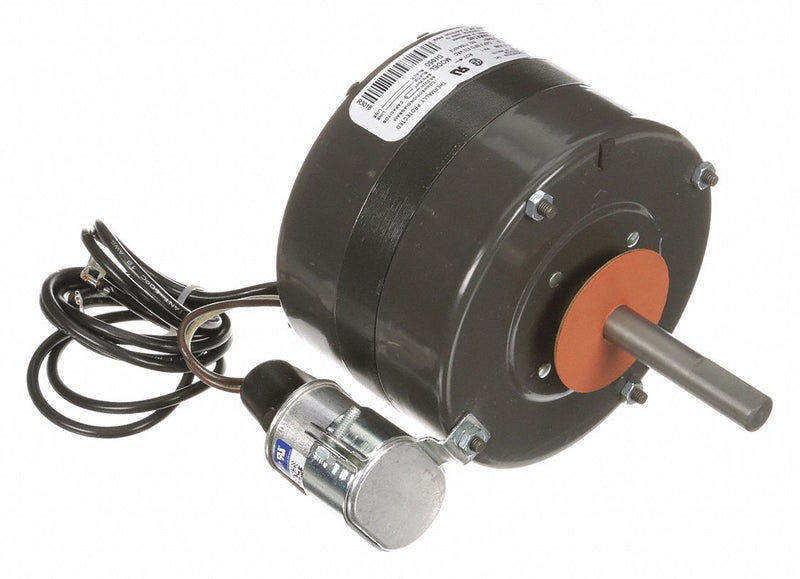

This motor is designed for use with unit heaters and other shaft-mounted fan and blower equipment items, such as air compressors. It features a totally enclosed ventilated motor enclosure design and is suitable for use in dusty, dirty, noncombustible environments.
| Item | Unit Heater Motor |
| Motor Application | HVAC/R |
| Motor Sub Application | Unit Heater |
| Motor Design | Permanent Split Capacitor |
| HP | 1/8 |
| Nameplate RPM | 1550 |
| Voltage | 230 |
| Frame | 29 |
| Motor Enclosure Design | Open Air-Over |
| Motor Mounting Type | Stud |
| No. of Speeds | 1 |
| Hz | 60/50 |
| Phase | 1 |
| Full Load Amps | 1.1 |
| Motor Thermal Protection | Auto |
| Ins. Class | B |
| Motor Service Factor | 1 |
| Motor Bearings | Sleeve |
| Max. Ambient Temp. | 40 Degrees C |
| Motor Shaft Rotation | CCWLE |
| Duty | Continuous |
| Motor Efficiency Group | NEMA Premium Efficient |
| Overall Length | 6 9/16 in |
| Length Less Shaft | 4 1/8 in |
| Shaft Dia. | 1/2 in |
| Shaft Length | 2 1/2 in |
| Body Dia. | 5 in |
| Mounting Stud Pattern | 3-1/4 in x 3-1/4 in |
| Application | Air Compressor |
| Manufacturers Warranty Length | 1 yr |
| Standards | CSA (LR34751), UL (58977) |
| Voltage Compatibility | 115/230, 120/240, 230, 240 |
