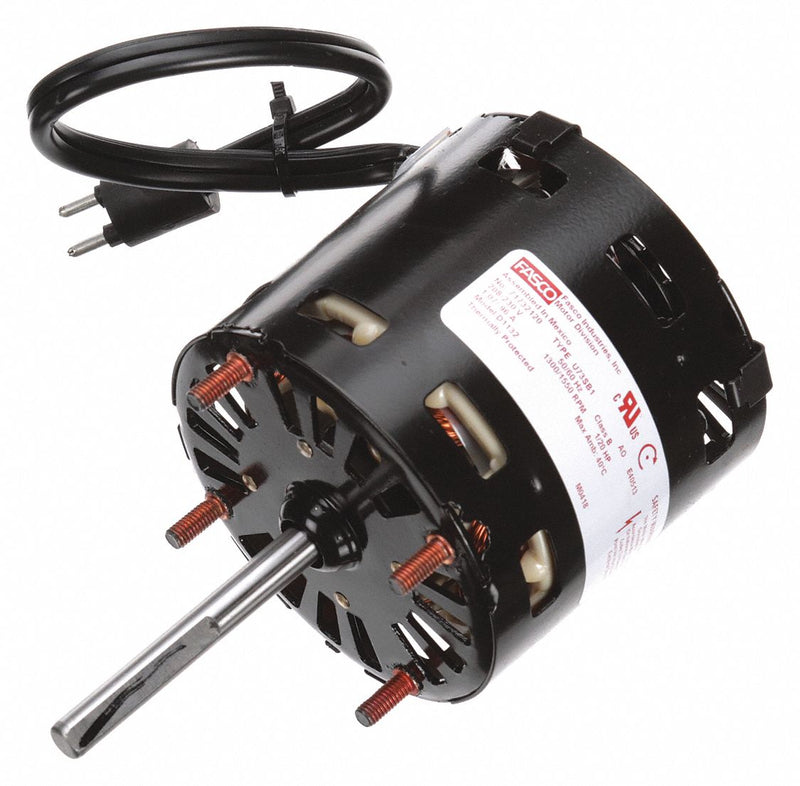

OEM Replacement Brand: Heatcraft; Item: Condenser Fan Motor; Motor Design: Shaded Pole; Phase: 1; HP: 1/20; No. of Speeds: 1; Voltage: 208/230; Motor Shaft Rotation: CWSE; Frame: 3.3; Motor Enclosure Design: Open Air-Over; Motor Mounting Type: Stud; Shaft Dia.: 5/16 in; Shaft Length: 2 1/2 in; Number of Shafts: 1; Motor Thermal Protection: Auto; Nameplate RPM: 1300/1550; Full Load Amps: 1.07/0.96; Hz: 50/60; Ins. Class: B; Max. Ambient Temp.: 40 Degrees C; Motor Service Factor: 1; Motor Bearings: Sleeve; Motor Shaft Design: Flat; Body Dia.: 3 19/64 in; Length Less Shaft: 3 in; Overall Length: 5 3/4 in; Bolt Circle Dia.: 2 13/16 in; Mounting Stud Pattern: 2 in x 2 in; Stud Size: 8-32 x 1/2 in; Capacitor Required: No; Replacement For: Heatcraft Mfr. No. 25300201, Fasco Mfr. No. 71639383; Application: Fan; Manufacturers Warranty Length: 1 yr; Standards: CSA (LR6319), UL (E40513)
| OEM Replacement Brand | Heatcraft |
| Item | Condenser Fan Motor |
| Motor Design | Shaded Pole |
| Phase | 1 |
| HP | 1/20 |
| No. of Speeds | 1 |
| Voltage | 208/230 |
| Motor Shaft Rotation | CWSE |
| Frame | 3.3 |
| Motor Enclosure Design | Open Air-Over |
| Motor Mounting Type | Stud |
| Shaft Dia. | 5/16 in |
| Shaft Length | 2 1/2 in |
| Number of Shafts | 1 |
| Motor Thermal Protection | Auto |
| Nameplate RPM | 1300/1550 |
| Full Load Amps | 1.07/0.96 |
| Hz | 50/60 |
| Ins. Class | B |
| Max. Ambient Temp. | 40 Degrees C |
| Motor Service Factor | 1 |
| Motor Bearings | Sleeve |
| Motor Shaft Design | Flat |
| Body Dia. | 3 19/64 in |
| Length Less Shaft | 3 in |
| Overall Length | 5 3/4 in |
| Bolt Circle Dia. | 2 13/16 in |
| Mounting Stud Pattern | 2 in x 2 in |
| Stud Size | 8-32 x 1/2 in |
| Capacitor Required | No |
| Replacement For | Heatcraft Mfr. No. 25300201, Fasco Mfr. No. 71639383 |
| Application | Fan |
| Manufacturers Warranty Length | 1 yr |
| Standards | CSA (LR6319), UL (E40513) |
