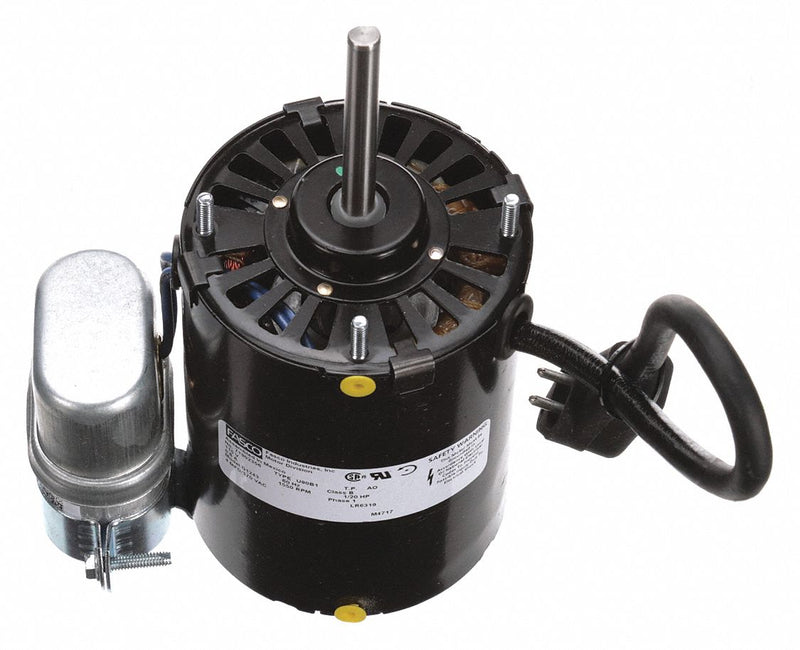

OEM Replacement Brand: Keeprite; Item: Condenser Fan Motor; Motor Design: Permanent Split Capacitor; Phase: 1; HP: 1/20; No. of Speeds: 1; Voltage: 115; Motor Shaft Rotation: CCWSE; Frame: Non-Standard; Motor Enclosure Design: Open Air-Over; Motor Mounting Type: Stud; Shaft Dia.: 5/16 in; Shaft Length: 2 3/4 in; Number of Shafts: 1; Motor Thermal Protection: Auto; Nameplate RPM: 1550; Motor Application: OEM Replacement; Motor Sub Application: Condenser Fan; Full Load Amps: 0.8; Hz: 60; Ins. Class: B; Max. Ambient Temp.: 40 Degrees C; Motor Service Factor: 1; Motor Bearings: Sleeve; Motor Shaft Design: Flat; Body Dia.: 3 19/64 in; Length Less Shaft: 4 1/4 in; Overall Length: 7 in; Bolt Circle Dia.: 2 13/16 in; Mounting Stud Pattern: 4 in x 4 in; Stud Size: 8-32 X 1/2 in; Capacitor Required: Included; Replacement For: 501899; Application: Fans and Blowers
| OEM Replacement Brand | Keeprite |
| Item | Condenser Fan Motor |
| Motor Design | Permanent Split Capacitor |
| Phase | 1 |
| HP | 1/20 |
| No. of Speeds | 1 |
| Voltage | 115 |
| Motor Shaft Rotation | CCWSE |
| Frame | Non-Standard |
| Motor Enclosure Design | Open Air-Over |
| Motor Mounting Type | Stud |
| Shaft Dia. | 5/16 in |
| Shaft Length | 2 3/4 in |
| Number of Shafts | 1 |
| Motor Thermal Protection | Auto |
| Nameplate RPM | 1550 |
| Motor Application | OEM Replacement |
| Motor Sub Application | Condenser Fan |
| Full Load Amps | 0.8 |
| Hz | 60 |
| Ins. Class | B |
| Max. Ambient Temp. | 40 Degrees C |
| Motor Service Factor | 1 |
| Motor Bearings | Sleeve |
| Motor Shaft Design | Flat |
| Body Dia. | 3 19/64 in |
| Length Less Shaft | 4 1/4 in |
| Overall Length | 7 in |
| Bolt Circle Dia. | 2 13/16 in |
| Mounting Stud Pattern | 4 in x 4 in |
| Stud Size | 8-32 X 1/2 in |
| Capacitor Required | Included |
| Replacement For | 501899 |
| Application | Fans and Blowers |
