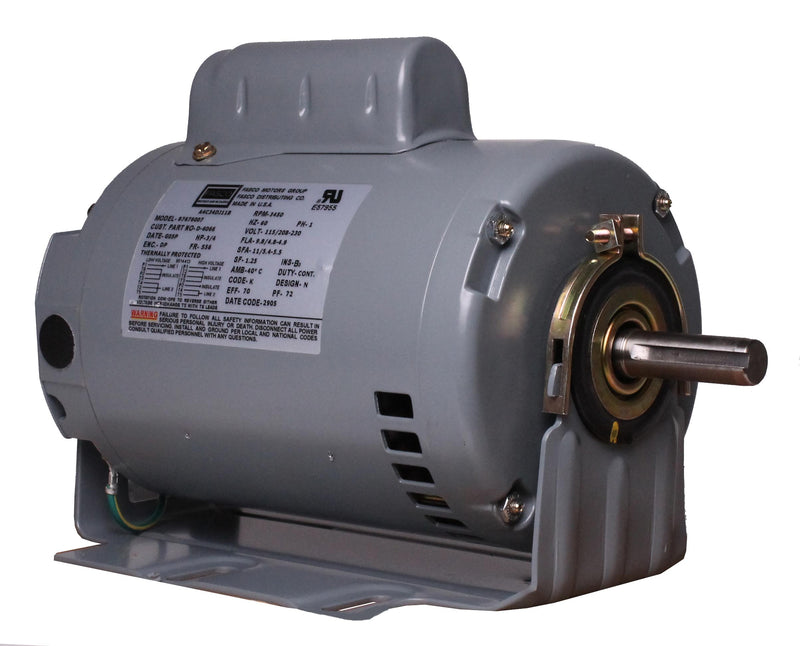

Item: Belt Drive Motor, Motor Type: Cap. Start, HP: 3/4, Nameplate RPM: 3450, Voltage: 115/208-230, Frame: 56, Enclosure: Drip Proof, Rotation: CW/CCW, Hz: 60, Phase: 1, Speeds: 1, Bearings: Ball, Base: Resilient, Shaft Number: 1, Shaft Length: 2", Shaft Dia.: 0.625", Ring to Ring Center: 9.445", Protection: none, Thermal Protection: No, Cooling: Ambient.
| Item | Belt Drive Motor |
| Motor Type | Cap. Start |
| HP | 3/4 |
| Nameplate RPM | 3450 |
| Voltage | 115/208-230 |
| Frame | 56 |
| Enclosure | Drip Proof |
| Rotation | CW/CCW |
| Hz | 60 |
| Phase | 1 |
| Speeds | 1 |
| Bearings | Ball |
| Base | Resilient |
| Shaft Number | 1 |
| Shaft Length | 2" |
| Shaft Dia. | 0.625" |
| Ring to Ring Center | 9.445" |
| Protection | none |
| Thermal Protection | No |
| Cooling | Ambient |
