- Features: Includes shaft water slinger, 60 degree C ambient, Closed end shield shaft end, All angle mount

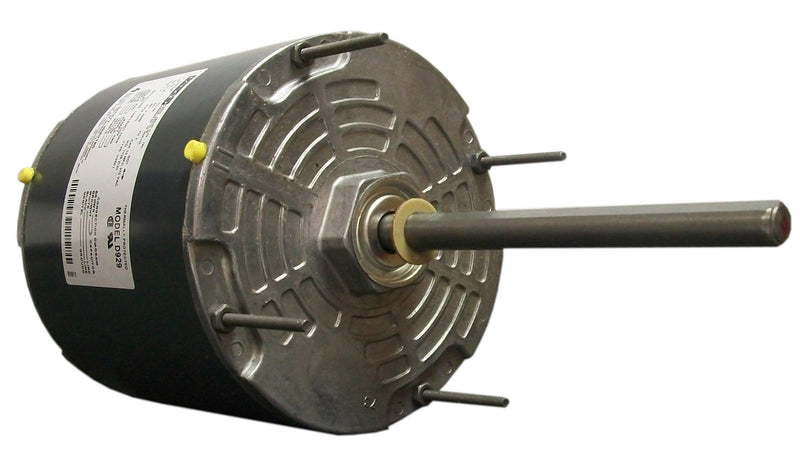

Item: Condenser Fan Motor, Motor Type: PSC, HP: 1/4, Nameplate RPM: 1075, Voltage: 208-230, Enclosure: Open Vent., Rotation: CW/CCW, Hz: 60, Phase: 1, Speeds: 1, Bearings: Ball, Shaft Number: 1, Shaft Length: 6", Shaft Dia.: 0.5", Thermal Protection: No, Cooling: Air Over, Capacitor: 5M 370V.
| Item | Condenser Fan Motor |
| Motor Type | PSC |
| HP | 1/4 |
| Nameplate RPM | 1075 |
| Voltage | 208-230 |
| Enclosure | Open Vent. |
| Rotation | CW/CCW |
| Hz | 60 |
| Phase | 1 |
| Speeds | 1 |
| Bearings | Ball |
| Shaft Number | 1 |
| Shaft Length | 6" |
| Shaft Dia. | 0.5" |
| Thermal Protection | No |
| Cooling | Air Over |
| Capacitor | 5M 370V |
