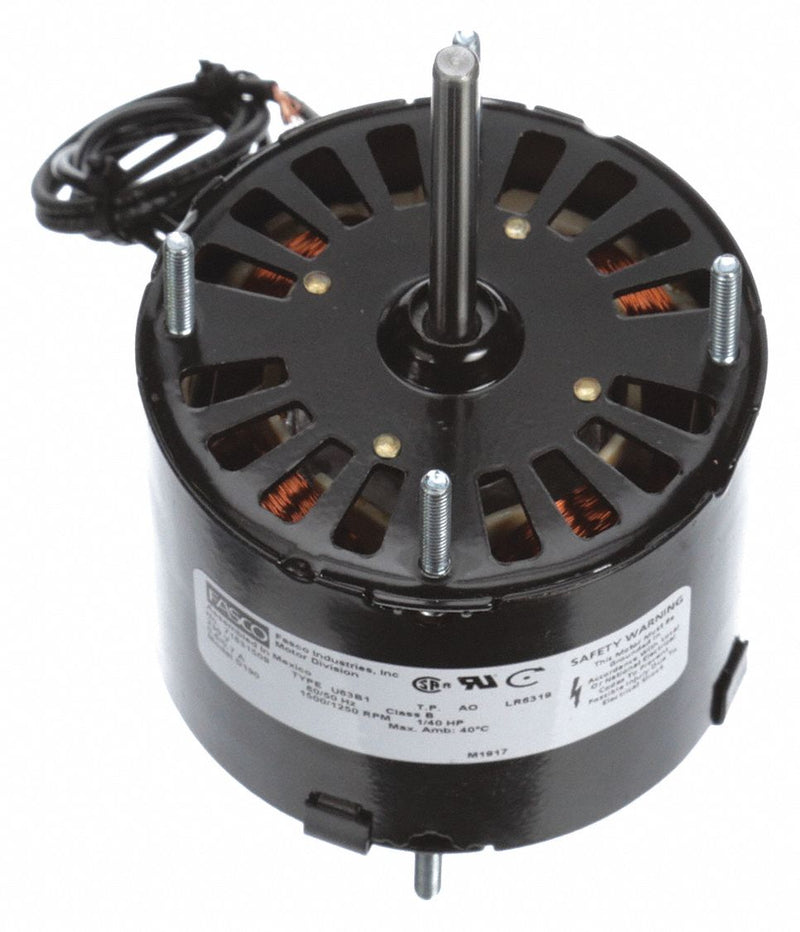

Fasco 1/40 HP, HVAC Motor, Shaded Pole, 1500/1250 Nameplate RPM, 230 Voltage, Frame 3.3 - D190

FascoSKU: C1555798
MPN : D190
Weight : 2.85 lb

filler

Price:
$150.20 $183.17

Availability : Usually Ships in 1-2 Business Days

Rugged, single-phase motor is designed for use in air-moving or mechanical applications, including fans, HVAC, pumps, and compressors.

ItemHVAC Motor
Motor DesignShaded Pole
HP1/40
No. of Speeds1
Voltage230
Motor Shaft RotationCWSE
Motor Enclosure DesignOpen Dripproof
Motor Mounting TypeStud
Shaft Dia.1/4 in
Shaft Length2 1/4 in
Number of Shafts1
Motor Thermal ProtectionAuto
Nameplate RPM1500/1250
Phase1
Motor ApplicationHVAC/R
Motor Sub ApplicationDirect Drive Fan/Blower
Frame3.3
Motor BearingsSleeve
Full Load Amps0.6
DutyContinuous
Motor Service Factor1
Hz60/50
Body Dia.3.3 in
Ins. ClassB
Max. Ambient Temp.40 Degrees C
Length Less Shaft2 1/2 in
Mounting Stud Location4/Both Ends
Stud/Base Mtg. Pattern2-7/8 in x 2-7/8 in
Motor Shaft DesignFlat
ApplicationHVAC/R
StandardsCSA Certified (LR6319), UL Recognized (E40513)
Mounting Pattern2-7/8 x 2-7/8
