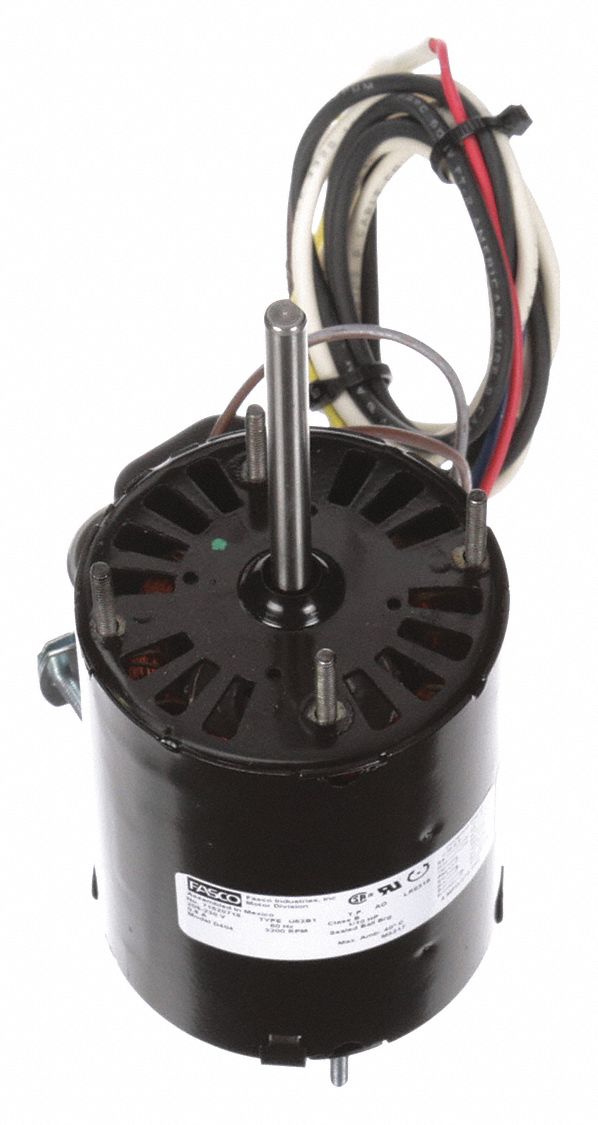

Single-phase PSC motor is designed for use in air-moving or mechanical applications, including fans, HVAC, pumps, and compressors. Includes capacitor.
| Item | HVAC Motor |
| Motor Design | Permanent Split Capacitor |
| HP | 1/10 |
| No. of Speeds | 1 |
| Voltage | 208-230 |
| Motor Shaft Rotation | CW/CCW |
| Motor Enclosure Design | Open Dripproof |
| Motor Mounting Type | Stud |
| Shaft Dia. | 5/16 in |
| Shaft Length | 3 1/4 in |
| Number of Shafts | 1 |
| Motor Thermal Protection | Auto |
| Nameplate RPM | 3200 |
| Phase | 1 |
| Motor Application | HVAC/R |
| Motor Sub Application | Direct Drive Fan/Blower |
| Frame | 3.3 |
| Motor Bearings | Ball |
| Full Load Amps | 0.8-0.8 |
| Duty | Continuous |
| Motor Service Factor | 1 |
| Hz | 60 |
| Body Dia. | 3.3 in |
| Ins. Class | B |
| Max. Ambient Temp. | 40 Degrees C |
| Length Less Shaft | 4 1/4 in |
| Mounting Stud Location | 4/Both Ends |
| Stud/Base Mtg. Pattern | 2-7/8 in x 2-7/8 in |
| Motor Shaft Design | Flat |
| Application | HVAC/R |
| Includes | 4 MFD/370 V AC Capacitor |
| Standards | CSA Certified (LR6319), UL Recognized (E46205) |
| Mounting Pattern | 2-7/8 x 2-7/8 |
| Capacitor Required | Yes |
