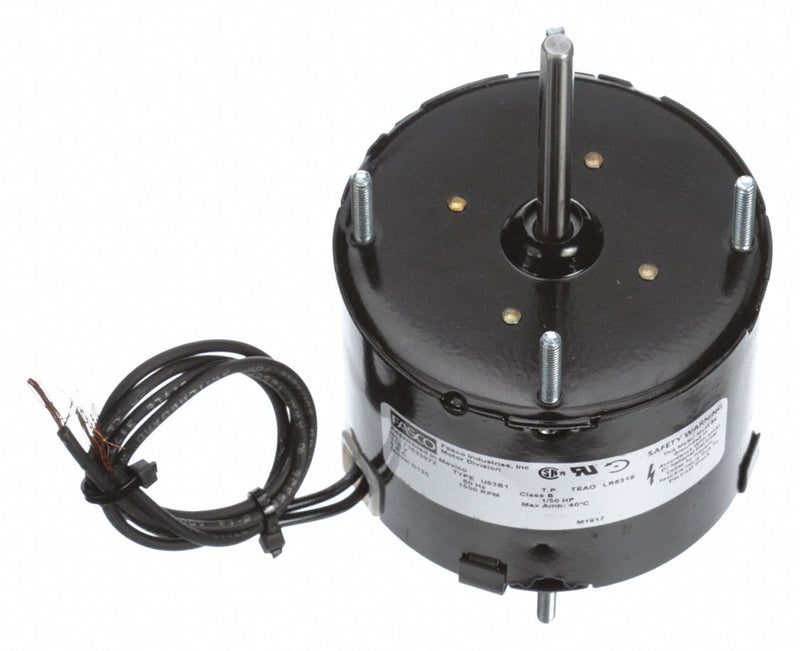

Fasco 1/50 HP, HVAC Motor, Shaded Pole, 1500 Nameplate RPM, 115 Voltage, Frame 3.3 - D125

FascoSKU: C1556013
MPN : D125
Weight : 5.25 lb

filler

Price:
$96.99 $156.43

Availability : Usually Ships in 10 Business Days

Rugged, single-phase motor is designed for use in air-moving or mechanical applications, including fans, HVAC, pumps, and compressors.

ItemHVAC Motor
Motor DesignShaded Pole
HP1/50
No. of Speeds1
Voltage115
Motor Shaft RotationCCWSE
Motor Enclosure DesignTotally Enclosed Nonventilated
Motor Mounting TypeStud
Shaft Dia.1/4 in
Shaft Length2 1/4 in
Number of Shafts1
Motor Thermal ProtectionAuto
Nameplate RPM1500
Phase1
Motor ApplicationHVAC/R
Motor Sub ApplicationDirect Drive Fan/Blower
Frame3.3
Motor BearingsSleeve
Full Load Amps0.8
DutyContinuous
Motor Service Factor1
Hz60
Body Dia.3.3 in
Ins. ClassB
Max. Ambient Temp.40 Degrees C
Length Less Shaft2 1/2 in
Mounting Stud Location4/Both Ends
Stud/Base Mtg. Pattern2-7/8 in x 2-7/8 in
Motor Shaft DesignFlat
ApplicationHVAC/R
StandardsCSA Certified (LR36496), UL Recognized (E40513)
Mounting Pattern2-7/8 x 2-7/8
