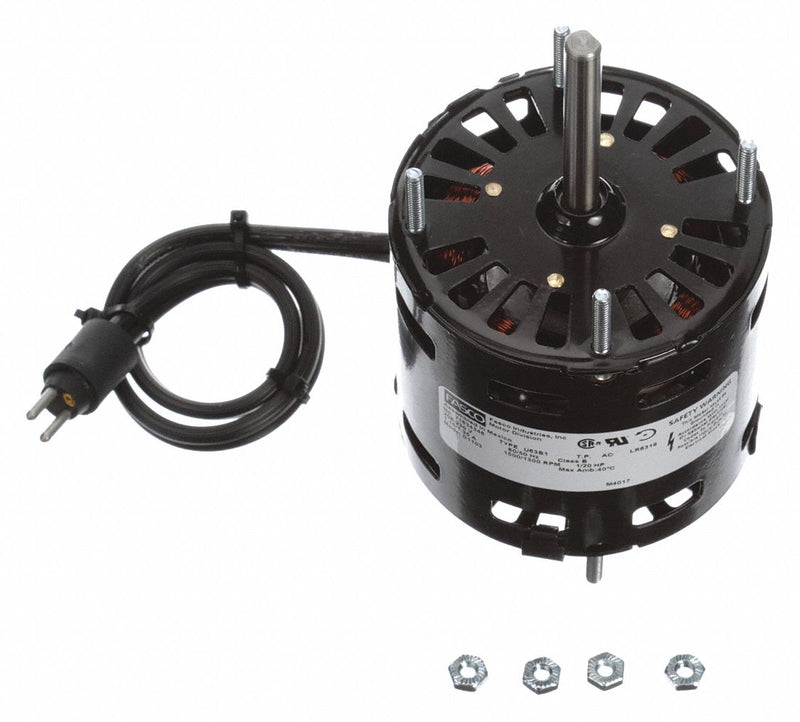

The FASCO 3.3-dia. HVAC motor is 1-phase, suitable for air-moving or mechanical applications, including fans, air conditioners, heaters, pumps, and compressors., Shaded pole ,Open air-over
| Item | HVAC Motor |
| Motor Design | Shaded Pole |
| HP | 1/20 |
| No. of Speeds | 1 |
| Voltage | 208-230 |
| Motor Shaft Rotation | CCWSE |
| Motor Enclosure Design | Open Air-Over |
| Motor Mounting Type | Stud |
| Shaft Dia. | 5/16 in |
| Shaft Length | 2 1/4 in |
| Number of Shafts | 1 |
| Motor Thermal Protection | Auto |
| Nameplate RPM | 1500 |
| Phase | 1 |
| Motor Application | HVAC/R |
| Motor Sub Application | Direct Drive Fan/Blower |
| Frame | 3.3 |
| Motor Bearings | Sleeve |
| Full Load Amps | 1.15-1.35 |
| Duty | Continuous |
| Motor Service Factor | 1 |
| Hz | 60/50 |
| Body Dia. | 3.3 in |
| Ins. Class | B |
| Max. Ambient Temp. | 40 Degrees C |
| Length Less Shaft | 3 in |
| Mounting Stud Location | 4/Both Ends |
| Stud/Base Mtg. Pattern | 2-27/32 in x 90 Degrees |
| Motor Shaft Design | Flat |
| Application | General Application |
| Cord Length | 15 in |
| Plug Type | Round 2 Pin |
| Standards | CSA Certified (LR6319), UL Recognized (E40513) |
