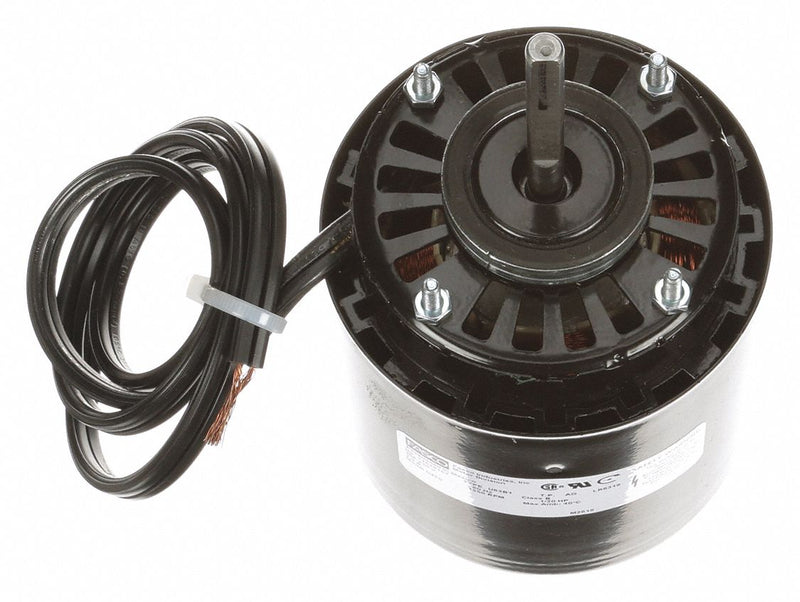

Fasco 1/20 HP, HVAC Motor, Shaded Pole, 1550 Nameplate RPM, 208-230 Voltage, Frame 3.3 - D470

FascoSKU: C1555098
MPN : D470
Weight : 4.62 lb

filler

Price:
$199.51 $243.31

Availability : Usually Ships in 1-2 Business Days

The FASCO 3.3-dia. HVAC motor is 1-phase, suitable for air-moving or mechanical applications, including fans, air conditioners, heaters, pumps, and compressors., Shaded pole ,Open air-over

ItemHVAC Motor
Motor DesignShaded Pole
HP1/20
No. of Speeds1
Voltage208-230
Motor Shaft RotationCWSE
Motor Enclosure DesignOpen Air-Over
Motor Mounting TypeStud
Shaft Dia.5/16 in
Shaft Length2 5/8 in
Number of Shafts1
Motor Thermal ProtectionAuto
Nameplate RPM1550
Phase1
Motor ApplicationHVAC/R
Motor Sub ApplicationDirect Drive Fan/Blower
Frame3.3
Motor BearingsSleeve
Full Load Amps1-1
DutyContinuous
Motor Service Factor1
Hz60
Body Dia.3.3 in
Ins. ClassB
Max. Ambient Temp.40 Degrees C
Length Less Shaft4 1/4 in
Mounting Stud Location4/Shaft End
Stud/Base Mtg. Pattern2-27/32 in x 90 Degrees
Motor Shaft DesignFlat
ApplicationGeneral Application
Cord Length32 in
StandardsCSA Certified (LR6319), UL Recognized (E40513)
