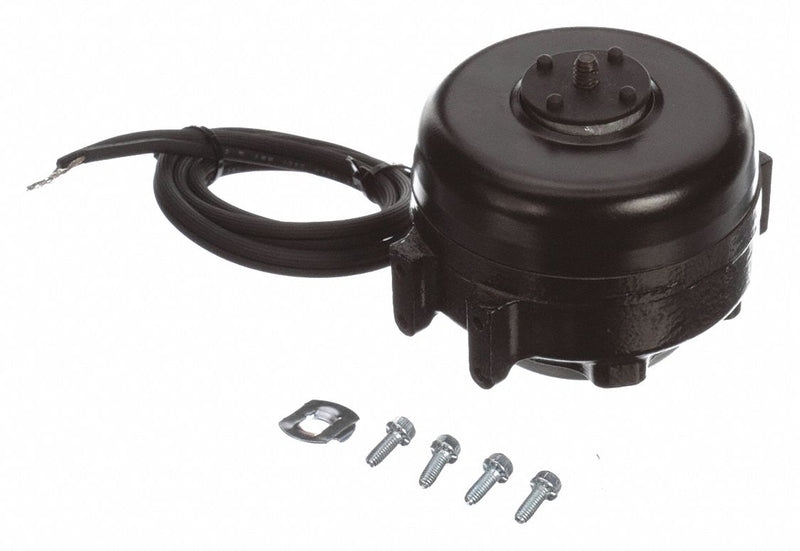

Fasco Shaded Pole Unit Bearing Motor, 4 W Output Watts, 1450 Nameplate RPM, 115 Voltage - UB588

FascoSKU: C2780448
MPN : UB588
Weight : 2.6 lb

filler

Price:
$52.08 $84.00

Availability : Usually Ships in 10 Business Days

This unit bearing motor features a totally enclosed air-over enclosure design. It can operate with shaft orientation at any angle. Use in commercial and industrial HVAC and refrigeration equipment, and other applications with 6" to 12" fan blades.

ItemUnit Bearing Motor
Motor ApplicationHVAC/R
Motor Sub ApplicationRefrigerator/Freezer
Motor DesignShaded Pole
Motor Enclosure DesignTotally Enclosed Air-Over
HP1/250
Nameplate RPM1450
FrameNon-Standard
Voltage115
Hz60/50
Phase1
Full Load Amps0.29
Output Watts4 W
Motor Mounting TypeRear/Double Foot
Motor Thermal ProtectionImpedance
Ins. ClassB
Motor Service Factor1
Motor BearingsUnit
Motor Frame MaterialCast Iron
Max. Ambient Temp.40 Degrees C
Motor Shaft RotationCWLE
Length Less Shaft2 9/16 in
Overall Length3 3/16 in
Motor Shaft DesignThreaded
Shaft Dia.1/4 in
Shaft Length2 29/32 in
Body Dia.3 11/32 in
Motor Mounting PositionAll Angle
Bolt Circle Dia.2 13/16 in
Mounting Stud Length3/8 in
IncludesSpeed Nut and Screw
StandardsUL and CSA
Voltage Compatibility115, 120
