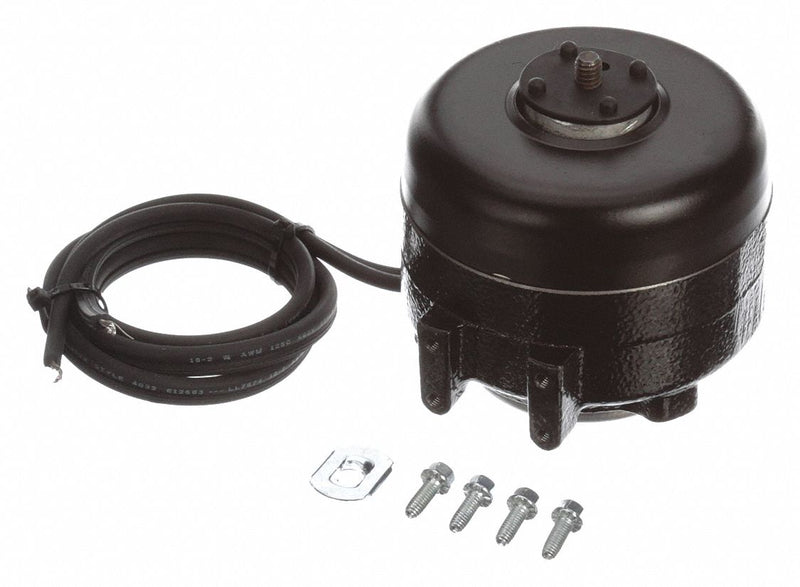

This unit bearing motor features a totally enclosed air-over enclosure design. Use in commercial and industrial HVAC and refrigeration equipment, and other applications with 6" to 12" fan blades.
| Item | Unit Bearing Motor |
| Motor Application | HVAC/R |
| Motor Sub Application | Condenser Fans |
| Motor Design | Shaded Pole |
| Motor Enclosure Design | Totally Enclosed Air-Over |
| HP | 1/125 |
| Nameplate RPM | 1550 |
| Frame | Non-Standard |
| Voltage | 230 |
| Hz | 60/50 |
| Phase | 1 |
| Full Load Amps | 0.18 |
| Output Watts | 6 W |
| Motor Mounting Type | Rear/Foot |
| Motor Thermal Protection | Impedance |
| Motor Service Factor | 1 |
| Motor Bearings | Unit |
| Motor Frame Material | Cast Iron |
| Max. Ambient Temp. | 40 Degrees C |
| Motor Shaft Rotation | CWLE |
| Length Less Shaft | 3 1/8 in |
| Overall Length | 3 1/2 in |
| Motor Shaft Design | Threaded |
| Shaft Dia. | 1/4 in |
| Shaft Length | 3/8 in |
| Body Dia. | 3 7/16 in |
| Motor Mounting Position | All Angle |
| Bolt Circle Dia. | 2 13/16 in |
| Manufacturers Warranty Length | 1 yr |
| Standards | CURUS (E81653), UL (E81653) |
| Voltage Compatibility | 115/230, 120/240, 230, 240 |
